SVS SoundPath Speaker Level Subwoofer Adapter

4.8
Rated 4.8 out of 5 stars
25 Reviews

SVS SoundPath Speaker Level Subwoofer Adapter

1 8
$ 79.99

each

$ 79.99

each

Sale

Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.

Find a Dealer

  • 45 Day Risk-Free In-Home Trial
  • Fast & Free Shipping and Returns
  • 5-Year Unconditional Warranty

Most Frequently Bought Together

View full details
additionalphoto

Easily Connect a Subwoofer to Legacy Audio Components

Many integrated amplifiers and legacy stereo receivers lack line-level outputs, leaving enthusiasts without the ability to connect a powered subwoofer to their system.

The SVS SoundPath Speaker Level Subwoofer Adapter elegantly solves this problem by stepping down the loudspeaker amplifier speaker-level voltage to RCA line-level voltage, allowing for a safe connection to a powered subwoofer with no loss of fidelity.

With a minimalist design and premium components, the SoundPath Speaker Level Subwoofer Adapter ensures pristine and transparent signal transfer to the subwoofer without compromise to any part of the playback system.

Specifications

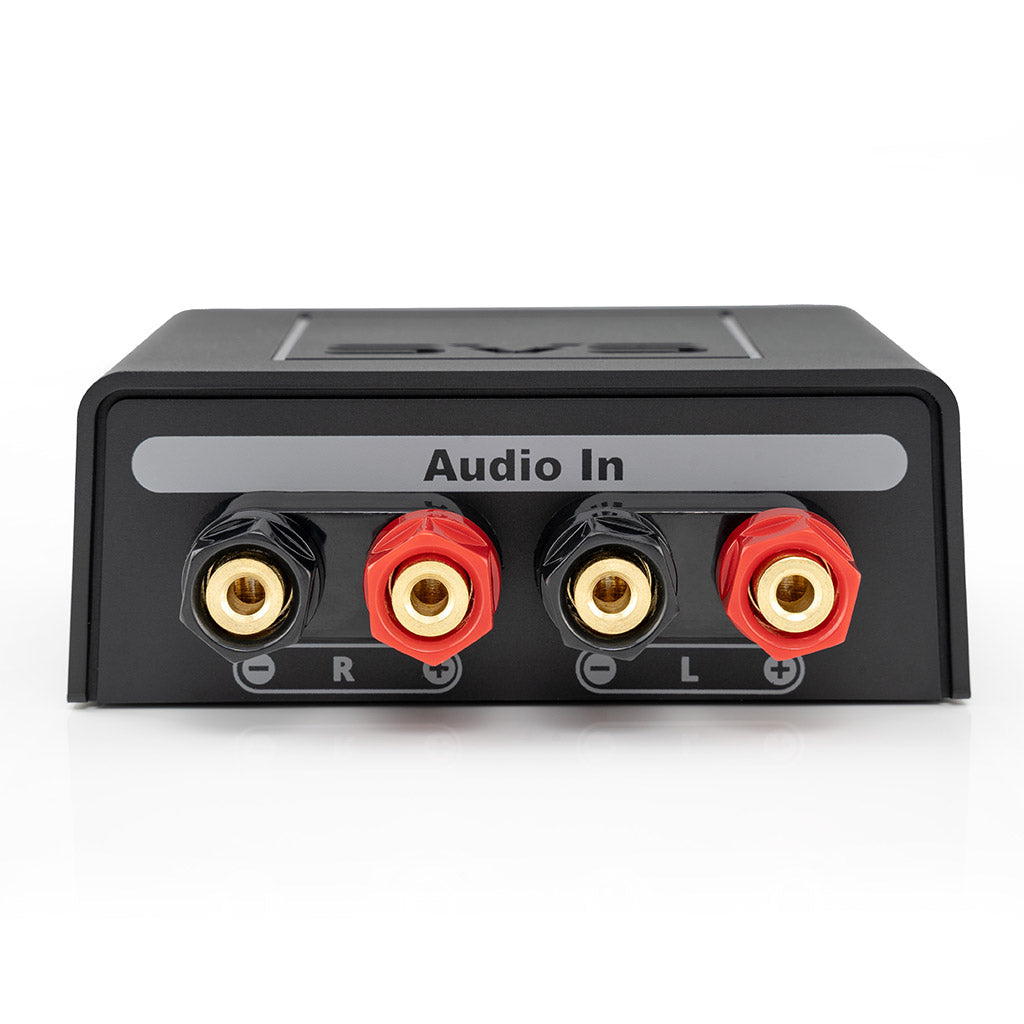

  • Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts

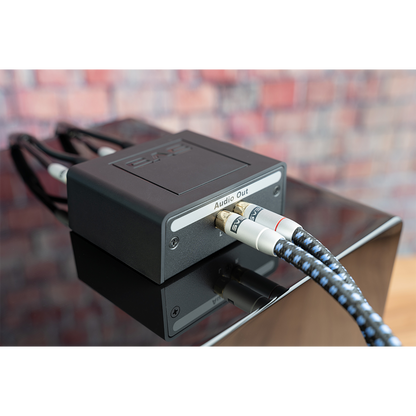

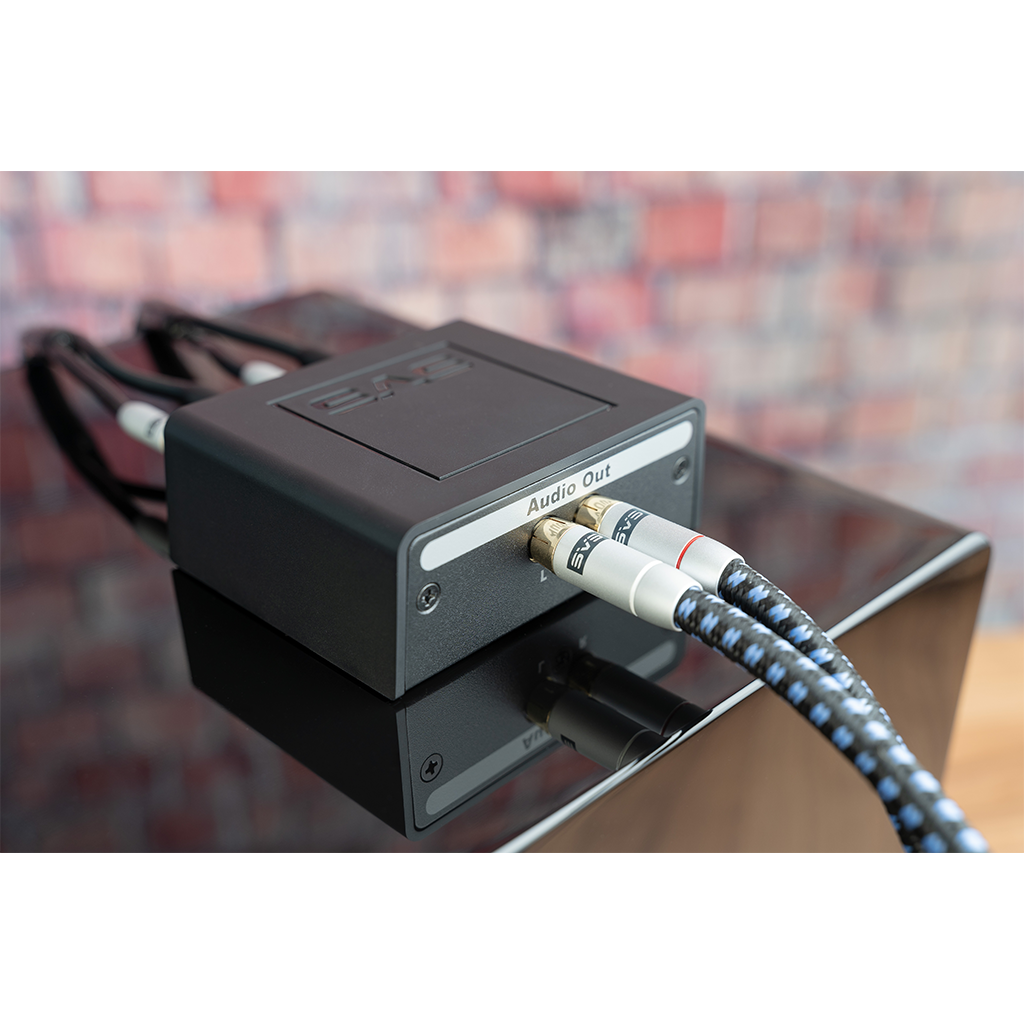

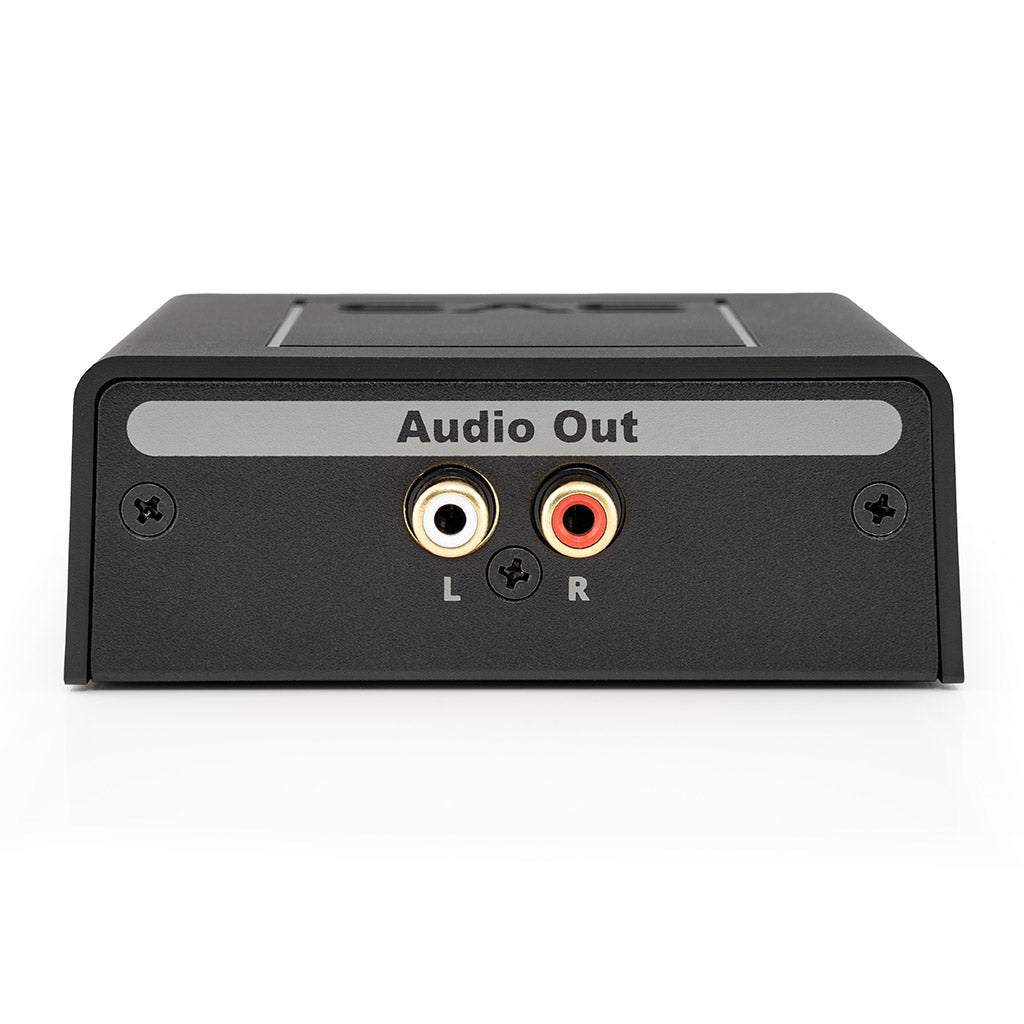

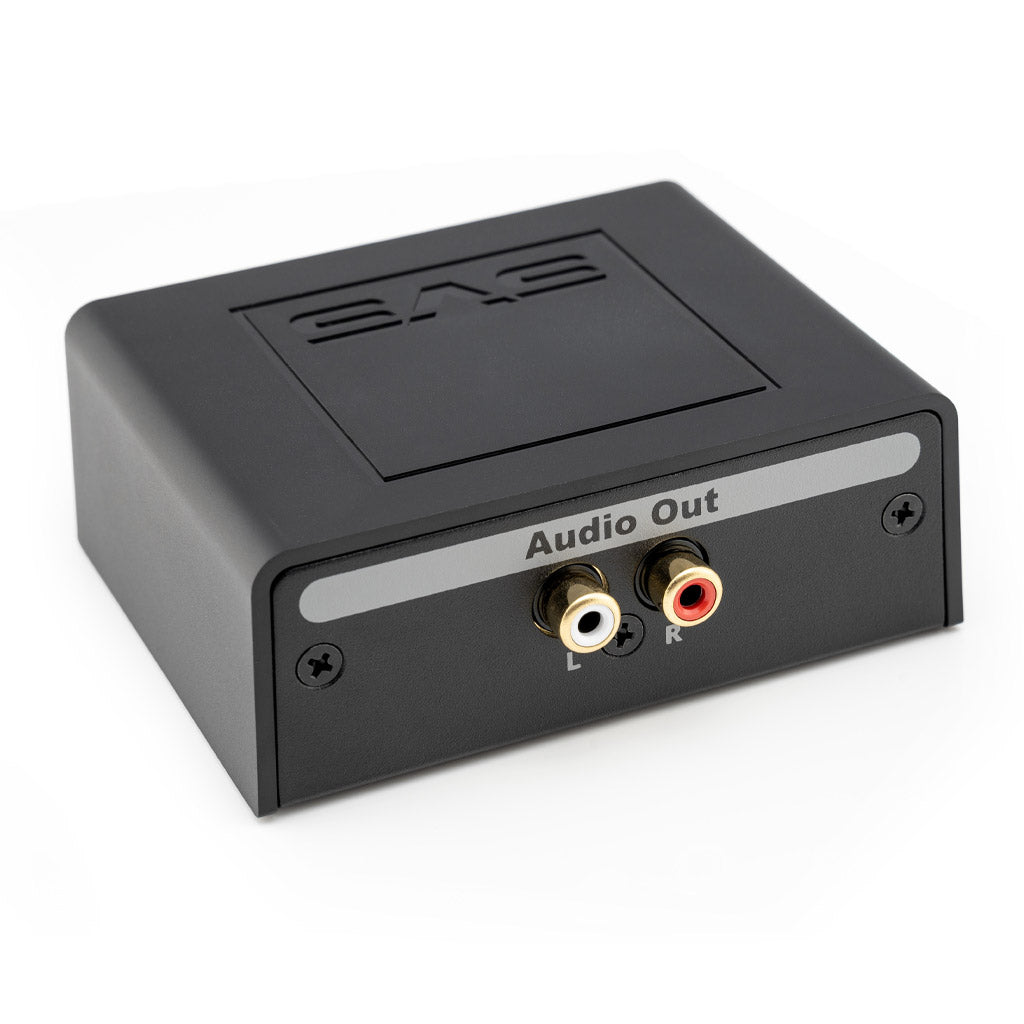

  • Line-Level Outputs: Stereo Gold-Plated RCA Jacks
  • Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
  • Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
SVS SoundPath Speaker Level Subwoofer Adapter Owner's Manual

Inspired Engineering for Uncompromised Performance

Bi-Wire Speaker Cable Breakdown

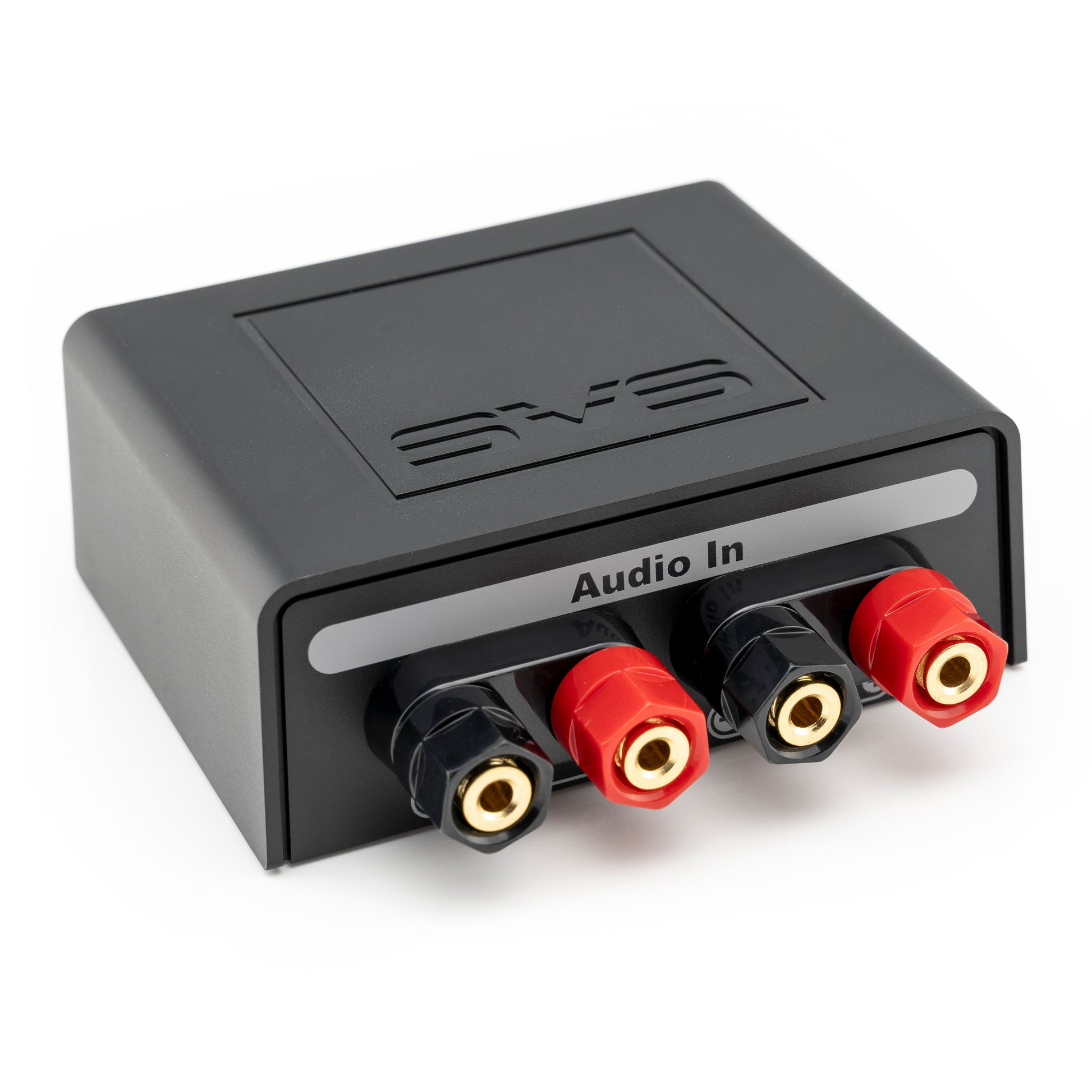

  • Stereo Gold-plated 5-way speaker-level binding posts allow bare-wire, spade, or banana connectors.
  • Gold-plated stereo RCA line-level output jacks ensure a secure connection to the line-level inputs of the powered subwoofer. Works seamlessly with a pair of SVS SoundPath RCA Subwoofer Cables.
  • Features premium grade narrow-tolerance resistors and wide-trace PCBs for high-current and extreme power handling. Uncompromising design yields wide bandwidth and ultra-low distortion for pristine signal transfer, pinpoint accuracy and compatibility with all high-end audio systems.
  • -30 dBV attenuation will not draw any power from the loudspeaker amplifier ensuring a safe signal for the subwoofer line level inputs.
  • Minimalist design with insulated chassis for discrete placement.

Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.

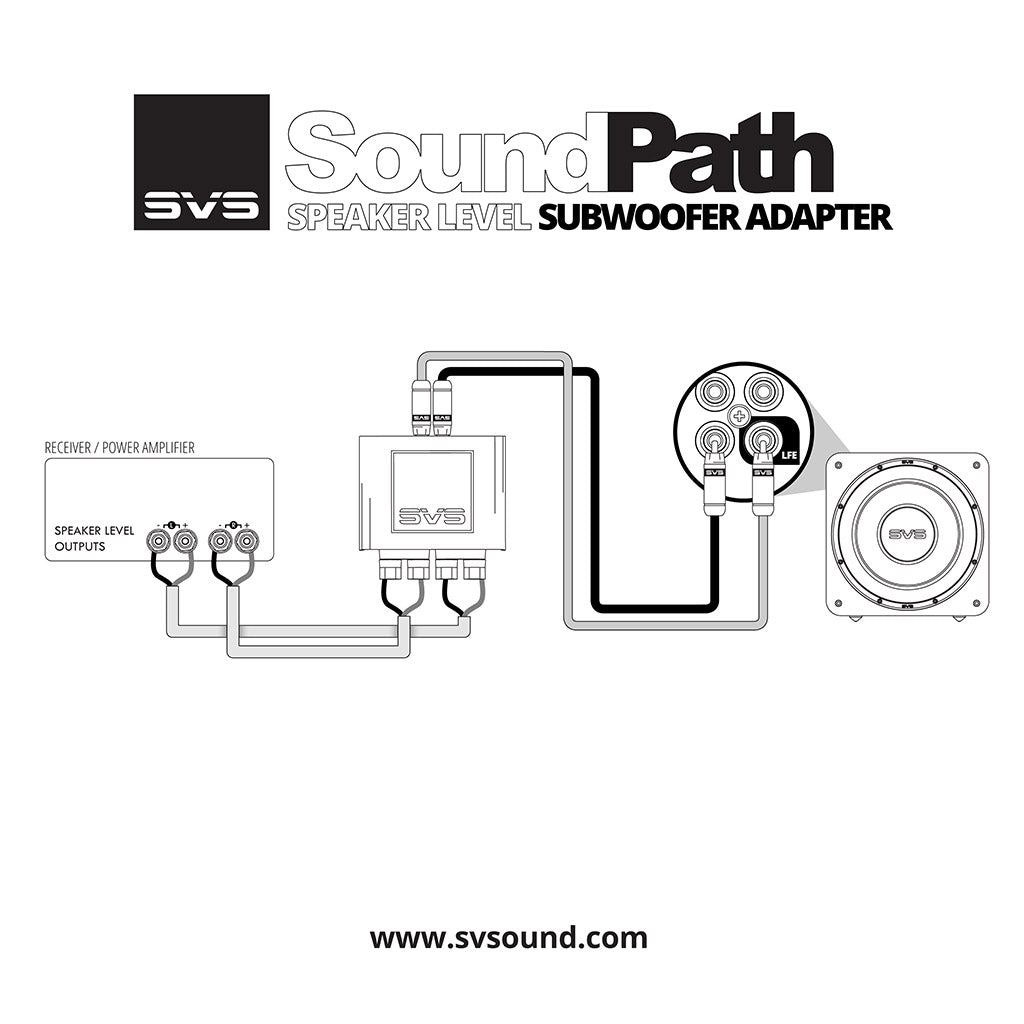

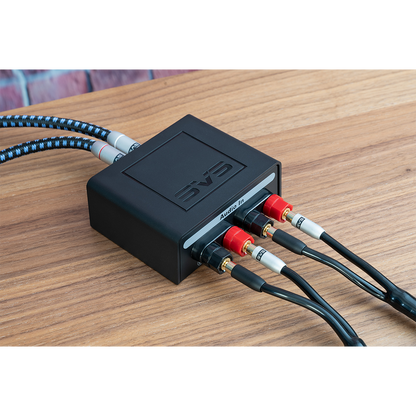

Easy Speaker Level to Line Level Connection

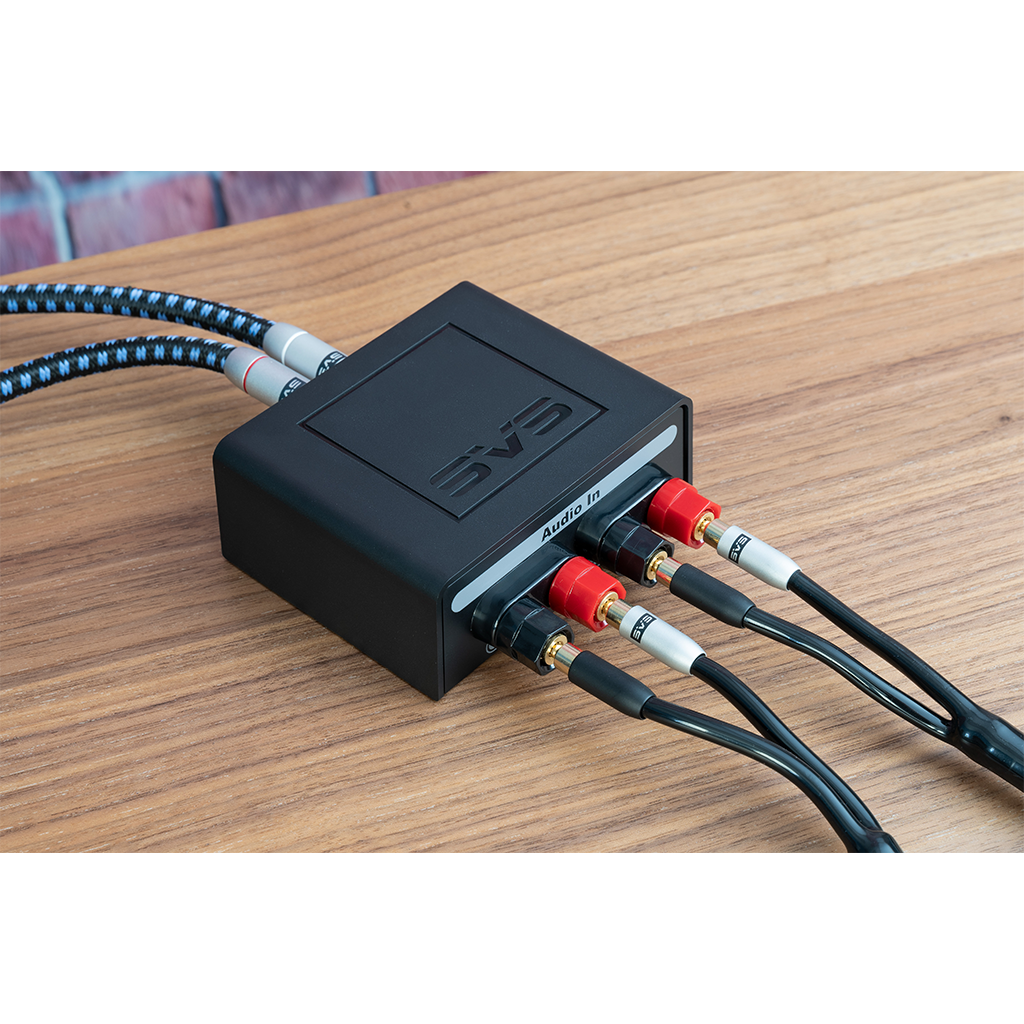

SVS SoundPath Bi-wire Speaker Cable can be used for an easy and elegant connection to both the loudspeaker amplifier and the SoundPath Speaker-Level to Line-Level adapter.

Features and Specifications:

  • Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts
  • Line-Level Outputs: Stereo Gold-Plated RCA Jacks
  • Speaker-Level Input Impedance: 4.85 kΩ
  • Line-Level Output Impedance: 150 Ω
  • Voltage Attenuation: -30 dBV
  • Power Handling: 500W RMS / 1,000W Peak
  • Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
  • THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
  • Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
  • Weight: 0.6 lb. (0.28 kg.)



Note: If you have a differential amplifier, please contact SVS Customer Service for guidance on special connection methods to safely use the SoundPath Speaker Level to Subwoofer Adapter.

4.8
Rated 4.8 out of 5 stars
Based on 25 reviews
Total 5 star reviews: 22 Total 4 star reviews: 2 Total 3 star reviews: 1 Total 2 star reviews: 0 Total 1 star reviews: 0
96%would recommend this product
Slide 1 selected
Write a Review (Opens in a new window)
25 reviews
  • MH
    Mark H.
    Flag of United States
    Verified Buyer
    3 months ago
    Rated 5 out of 5 stars
    Impressions: SVS SoundPath Speaker Level Subwoofer Adapter

    This high level to line level adapter for connecting subwoofers works exactly as advertised and is easy to use and connect. It presented solutions for two amplifiers of mine, which do not have the subwoofer outputs which I needed. My Pass INT-25 integrated has no subwoofer or line outs, and the SVS adapter has enabled stereo subwoofer connections to my SVS SB-5000 R / Evolutions. For my Cabasse Abyss streaming amplifier with only a single subwoofer output, I am using a second SVS adapter to enable high level to line level stereo subwoofer implementation with it as well. Keep in mind that with “Y” adapters, the SVS SoundPath adapter will also enable single subwoofer as well as dual mono subwoofer implementations according to desired configuration and system context.

    These adapters come very well packaged, their build quality is very good, and their appearance is tidy, tasteful, and straightforward. Jonathan and Nick at SVS were very helpful in responding to my inquiries about the use of the adapters. In comparison to other high-level two line level adapters in the marketplace which I considered, this one struck the best balance of quality design and construction and reasonable price.

    Was this helpful?
  • TC
    Travis C.
    Verified Buyer
    Content use Movies, Music
    Product use Home theater surround sound, 2-channel stereo
    33 seconds ago
    Content use Movies, Music
    Product use Home theater surround sound, 2-channel stereo
    Rated 4 out of 5 stars
    Great Quality; Would Love Attenuation Knob

    Quality was exactly as expected from SVS; excellent, as with everything I have purchased form them. Item performed exactly as described, and it incorporated into my system very well.

    As a potential improvement, I would love an attenuation knob to dial in the signal. I had to do a bit more tweaking than anticipated due to the level of attenuation. Maybe not a big deal for some, but I had to increase the gain on my subwoofers higher than I'd like.

    Was this helpful?
  • JA
    Jacob A. K.
    Verified Buyer
    Content use Music
    Product use 2-channel stereo
    3 days ago
    Content use Music
    Product use 2-channel stereo
    Rated 5 out of 5 stars
    easy to use adaptor

    easy to use adaptor for a reasonable price, although this is the only way I have ever hooked my subwoofers up, I do not notice any degradation or ill effect using this, I am solely listening to music

    Was this helpful?
  • JH
    Jeff H.
    Verified Buyer
    Content use Music
    Product use 2-channel stereo
    6 days ago
    Content use Music
    Product use 2-channel stereo
    Rated 5 out of 5 stars
    Outstanding Base!

    This adapter was exactly what I needed to add a Klipsch powered subwoofer to a 2 channel system without a Sub Out port. The folks at SVS really know what they're doing and I look forward to buying more of their 'Made in USA' products!

    Was this helpful?
  • CD
    Craig D.
    Verified Buyer
    Content use Music
    Product use 2-channel stereo
    1 week ago
    Content use Music
    Product use 2-channel stereo
    Rated 5 out of 5 stars
    Excellent little box

    This SVS box solves a tricky problem . . . I can now use my integrated amp (which does not have a "pre-out" or "sub-out") by basically now allowing my SVS sub to accept high level input (from the amp's speaker binding posts). Quick, clean, works seamlessly. Cannot recommend this device enough!

    Was this helpful?
