SVS SoundPath Ultra Bi-Wire Speaker Cable
SVS SoundPath Ultra Bi-Wire Speaker Cable
Three-Layer Insulation System Deters Interference with Style
3-layer shielding system, including 3.2mm and 7.6mm PVC dielectric cores, protects each conductor from noise and distortion caused by interference.
Extra durable precision machined and anodized aircraft grade aluminum body.

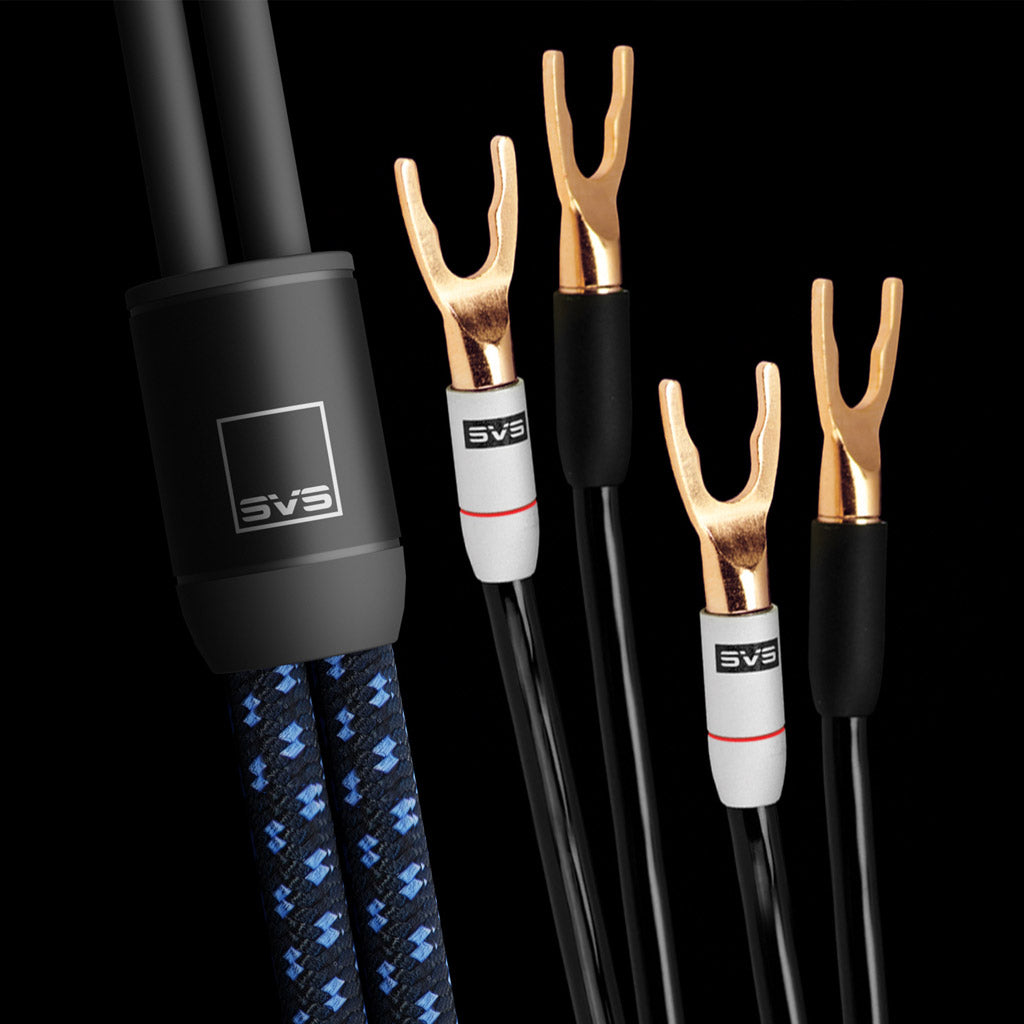

Pristine signal transfer from hand-soldered 24K Gold-plated spades or banana plugs. Bare wire also available.
Premium braided cotton jacket adds gription and protects against physical wear and tear.
Inspired Engineering for Uncompromised Performance
- 14 AWG stranded speaker wire – Each SoundPath Ultra Bi-Wire Cable is made with four braided Dual Balanced conductors, with a total of 164 strands of 99.99% pure stranded copper.
- PVC dielectric joint - Flexible and durable break-out for Positive and Negative terminals
- Rated Bandwidth = DC-5.0 MHz (3M cable) with ≤1.1 Voltage Standing Wave Radio (VSWR) and ≥26dB Return Loss
- Conductor DCR = 8 mΩ/meter
- Nominal Impedance = 90Ω - Cable and connectors are impedance-matched to minimize VSWR and Return Loss
- Nominal Capacitance = 68pF/meter @ 1kHz
SVS SoundPath Ultra Bi-Wire Speaker Cable Specs:
- 14 AWG stranded speaker wire - Each SoundPath Ultra Bi-Wire Cable is made with four braided Dual Balanced conductors, with a total of 164 strands of 99.9% pure stranded copper.
- Speaker and amp terminals consist of precision machined and anodized aircraft grade aluminum body - stylish and durable with a great feel and easy handling
- PVC dielectric joint - Flexible and durable break-out for Positive and Negative terminals
- Rated Bandwidth = DC-5.0 MHz (3M cable) with ≤1.1 Voltage Standing Wave Radio (VSWR) and ≥26dB Return Loss
- Conductor DCR = 8 mΩ/meter
- Nominal Impedance = 90Ω - Cable and connectors are impedance-matched to minimize VSWR and Return Loss
- Nominal Capacitance = 68pF/meter @ 1kHz
