SUMMARY: This article explains how the SVS SoundPath Speaker Level Subwoofer Adapter allows you to integrate a subwoofer with an amplifier that does not have RCA outputs.

There’s something undeniably special about a vintage integrated amplifier. The tactile knobs, warm sonic character, and timeless design keep music lovers coming back decade after decade. But there’s one limitation many classic amps share: No dedicated RCA line-level outputs, or dedicated subwoofer outputs.

So how do you bring modern, room-filling low frequency performance into a system which was built decades before subwoofers became standard?

The answer is simpler than you might think.

Why Add a Subwoofer to a Vintage Integrated Amplifier or Receiver?

Vintage integrated amplifiers and stereo receivers were designed in an era when full-range powered subwoofers handled bass duties and powered subwoofers were not widely available for consumers. As content and listening habits have evolved, the need for speakers that can produce deep, visceral low frequencies has grown immensely.

Adding a subwoofer delivers several benefits:

• Deeper bass extension – Reach frequencies below 30 Hz that most vintage speakers can’t reproduce
• Improved dynamics – Bass-heavy music content gains impact and realism
• System flexibility – Dial-in bass levels to match your room and preferences

The challenge? Getting a signal from an integrated amplifier that was never designed to feed a subwoofer because it has no line-level RCA outputs.

Modern AV receivers and integrated amplifiers typically include a set of line-level Pre-Outs or a dedicated subwoofer output. Vintage gear usually does not. Instead, these amplifiers only provide speaker-level outputs—the same connections used to drive your main speakers.

These speaker level outputs cannot be directly connected to the subwoofer RCA inputs. This is not physically possible and would also damage the subwoofer amplifier because the speaker-level signals carry much higher voltage than the line-level inputs expect.

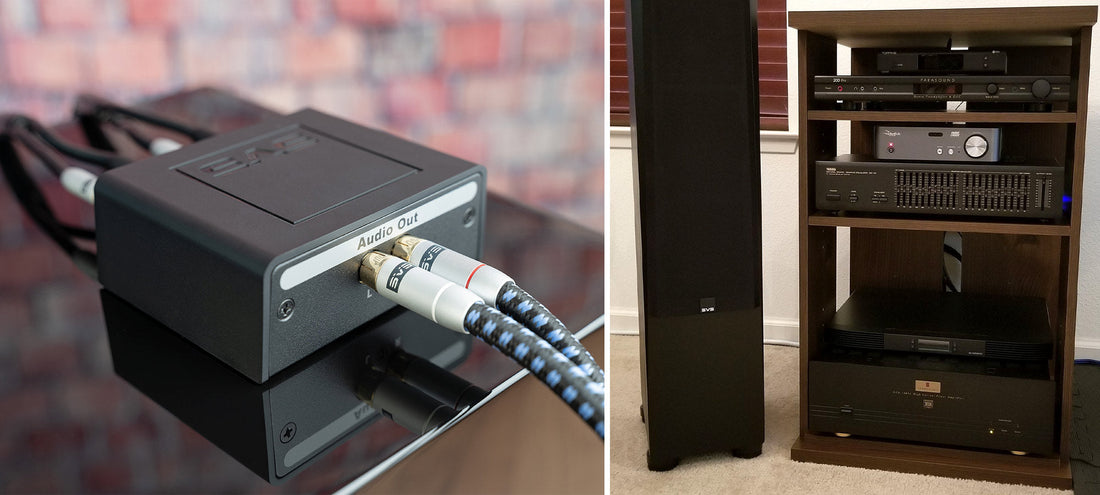

That’s where the SVS SoundPath Speaker Level Subwoofer Adapter comes in.

How the SVS SoundPath Speaker Level Subwoofer Adapter Works

The SVS SoundPath Speaker Level Subwoofer Adapter acts as a bridge between your integrated amplifier speaker outputs and the subwoofer.

Here’s what it does:

• Accepts speaker-level signals from the amplifier output.
• Reduces (steps down) the speaker level voltage about 30 dBV to a safe line-level signal.
• Outputs a safe line level RCA signal that can be connected to your subwoofer RCA inputs.

This allows you to integrate a powered subwoofer into virtually any audio system—even one built long before subwoofer outputs existed.

Basic Setup: Connecting a Standard Amplifier

Setting up the adapter is straightforward and requires no modification to your amplifier.

Because the adapter doesn’t draw any power from your loudspeaker amplifier, it doesn’t affect system performance or the amplifier's load impedance.

1. Turn off all equipment.
2. Connect speaker wires from the amplifier outputs to your speaker inputs as usual.
3. Tap into the same amplifier outputs using additional speaker wire and connect them to the SoundPath adapter left/right input terminals.
4. Important Note: If you have a differential loudspeaker amplifier, see below guidance.
5. Connect RCA cables from the adapter RCA outputs to the subwoofer RCA inputs.

Connecting a Differential (Balanced) Amplifier

Some modern and high-end integrated amplifiers use differential (balanced) outputs, where both positive and negative speaker terminals are actively driven. The negative terminals of a differential amplifier cannot be connected to SoundPath adapter.

Instead, connect a ground wire from the differential amplifier ground terminal to one negative terminal of the SoundPath adapter. This ground ensures proper signal reference without risking damage to the amplifier.

Refer to the differential amplifier connection diagram below for a safe and proper setup.

Dialing In the Sound

Once connected, adjust your subwoofer settings as follows:

1. Look-up the rated low frequency extension specification for your loudspeakers.
2. Set the subwoofer low pass filter (often labeled crossover) to the low frequency extension spec for your loudspeakers.
3. If your low pass filter has an adjustable slope (like SVS subwoofers), choose a 12 dB slope for sealed loudspeakers or 24 dB slope for ported loudspeakers.
4. Adjust the subwoofer volume (gain) to match the loudspeakers.
5. Trust your ears and fine-tune the low pass filter frequency and volume for a smooth and seamless blend with your loudspeakers. The goal is a fuller, deeper and more natural soundstage.

Why This Approach Works

The SVS SoundPath Speaker Level Subwoofer Adapter preserves the sonic character of your vintage system while unlocking the full-range performance of a modern subwoofer.

Instead of replacing your vintage gear, you’re enhancing it - bringing together classic amplification and more immersive low-frequency performance.

The SVS SoundPath Speaker Level Subwoofer Adapter makes it simple, safe, and effective. And once you hear your system with a properly integrated subwoofer and enhanced low-frequency extension, you’ll wonder how you ever listened without it!
