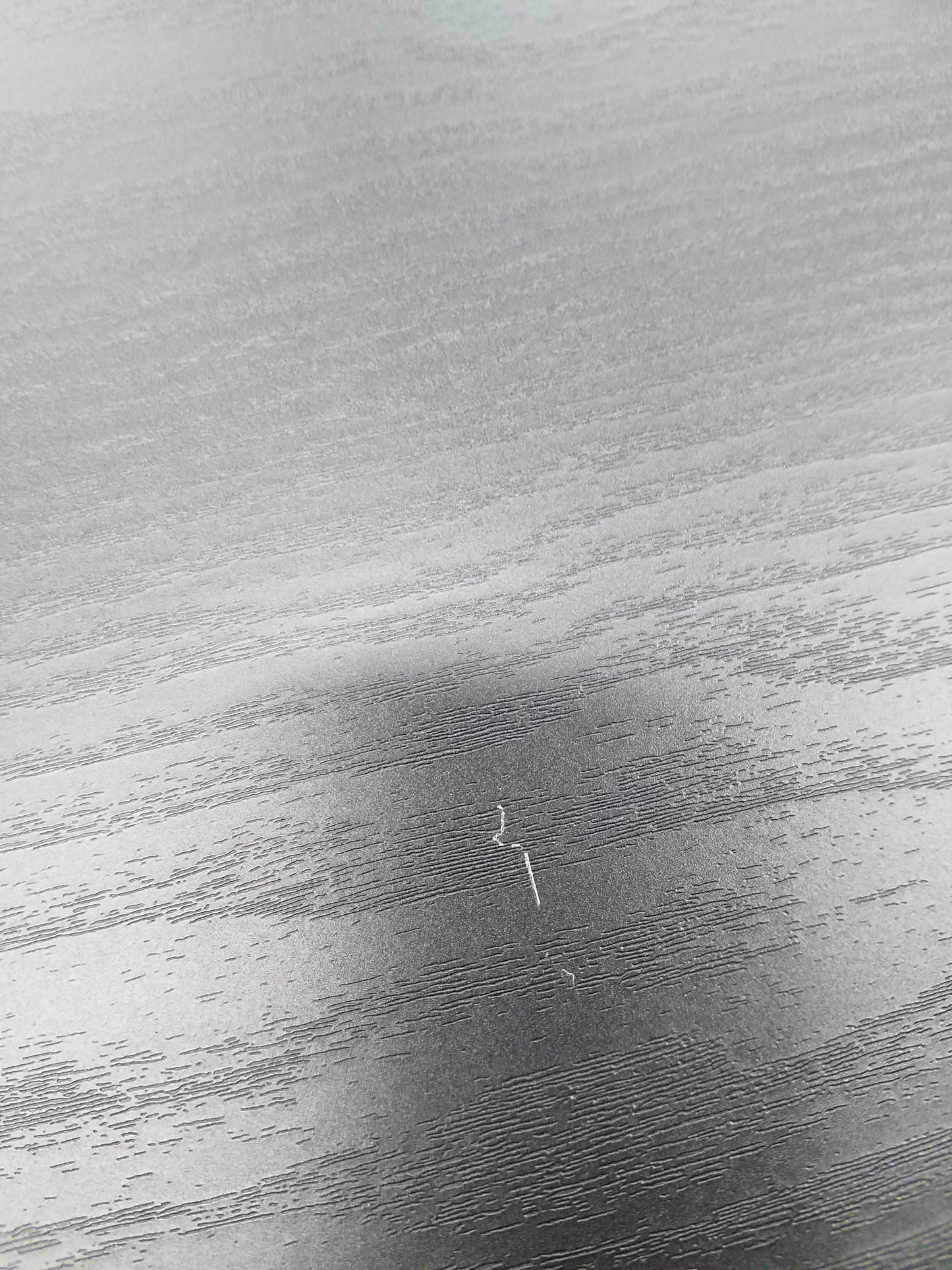

Outlet Special: Blemish in finish. See additional pic. Factory inspected and tested. 5-Year Unconditional Warranty and complete Bill of Rights coverage.

Save an extra 5% on the purchase of 2 or more subwoofers with promo code "".

  • 45 Day Risk-Free In-Home Trial
  • Fast & Free Shipping and Returns
  • 5-Year Unconditional Warranty

Most Frequently Bought Together

View full details
additionalphoto

For chest-thumping movie slam and impact and sheer low frequency performance for the price, the PB-2000 subwoofer destroys larger and more expensive subwoofers, dipping all the way down to 17Hz without sacrificing musicality or speed in transients. The subwoofer features a front-firing 4-inch high-flow port with inner/outer port flares and energizes rooms of all sizes with extreme low frequency output for jaw-droppingly powerful and realistic movie and music audio experiences.

Commanding 12-Inch SVS High Output Driver

Commanding 12-Inch SVS High Output Driver

At the heart of the SVS PB-2000 ported box subwoofer is a newly engineered 12-inch 2000-series driver with dual high-grade ferrite magnets and FEA-optimized motor for nearly distortion-free performance. A reinforced Nomex spider was integrated for improved linearity and driver control, especially important when the STA-500D amp is pushing the subwoofers to their maximum output levels. To ensure the PB-2000 can withstand punishing output levels long into the future, the driver also features a durable low-creep rubber long-throw surround and integrated tinsel leads to maximize longevity.

Powerful and Sophisticated Sledge STA-500D Amplifier

Sledge STA-500D DSP amplifier

The PB-2000 Subwoofer’s Sledge STA-500D DSP amplifier features specs and features normally found in subwoofers costing two or three times as much. Conservatively rated at a robust 500 watts RMS continuous and 1,100+ watts peak dynamic, the amplifier has brains to match its brawn. A sophisticated DSP in the amplifier includes an array of filters and volume, gain, and phase controls for fine-tuning performance. The innovations don’t stop there though. A frequency-dependent limiter/compressor algorithm with adjustable attack/release and compression parameters offers the ultimate in refined behavior at the drive limits of the subwoofer system.

With cabinet dimensions of 20.9” x 17.3” x 22” and weighing 66 lbs, the PB-2000 is nearly 40% larger and twice the weight of the SB-2000.

Frequency Response / Acoustic Data:

PB-2000 Frequency Response Chart* Frequency response graph does not denote maximum output capability
  • 17-260 Hz +/- 3 dB
  • Expect 2-3 Hz deeper extension in small to mid-size rooms.
  • 2-meter ground plane away from reflective structures (quasi-anechoic)

Subwoofer Specs:

  • Premium black ash finish.
  • Protective non-resonant steel mesh grille.
  • Front-firing 12" driver.
  • Rear-mounted amplifier.
  • Screw-in rubber feet.
  • Robust Medium Density Fiberboard(MDF) cabinet construction.
  • Cabinet Dimensions: 20.9" (H) x 17.3" (W) x 23.2" (D) (without grille).
  • Overall Dimensions: 20.9" (H) x 17.3" (W) x 25.4" (D) (with grille).
  • Weight (unboxed): 65.6 pounds.
  • Shipped Dimensions: 30" (H) x 23" (W) x 27" (D).
  • Shipped Weight: 82 pounds.

Driver Specs:

  • SVS 12” 2000-series driver.
  • Powder-coated cast aluminum basket.
  • Dual high-grade ferrite magnets.
  • Finite Element Analysis (FEA)-optimized motor structure.
  • Dual shorting rings reduce gap induction and lower distortion.
  • Extended pole piece improves heat sink and thermal management properties.
  • 2” diameter, high-power voice coil.
  • Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
  • High-quality insulated tinsel leads with 3-point-contact precision alignment.
  • Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior.
  • Low-creep rubber long-throw surround for excellent durability and longevity.

Amplifier Specs:

  • Sledge STA-500D DSP amplifier.
  • 500 watts RMS continuous (1100 watts peak dynamic).
  • Efficient and cool-running Class D topology.
  • DSP control for accurate response and refined behavior under all operating conditions.
  • Main power rocker switch.
  • Auto-On / On toggle switch.
  • 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input.
  • Green standby mode with < 0.5 watts consumption.
  • Stereo line-level RCA Input & Output connections.
  • Input impedance – 47 kΩ (unbalanced line-level RCA).
  • Continuously variable volume/gain control.
  • Continuously variable (0-180 degrees) phase control.
  • Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
  • Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
  • RoHS compliant, lead-free construction and world-wide safety certifications.
  • Detachable power cord.
