PB12-NSD - Outlet - 2124

PB12-NSD - Outlet - 2124

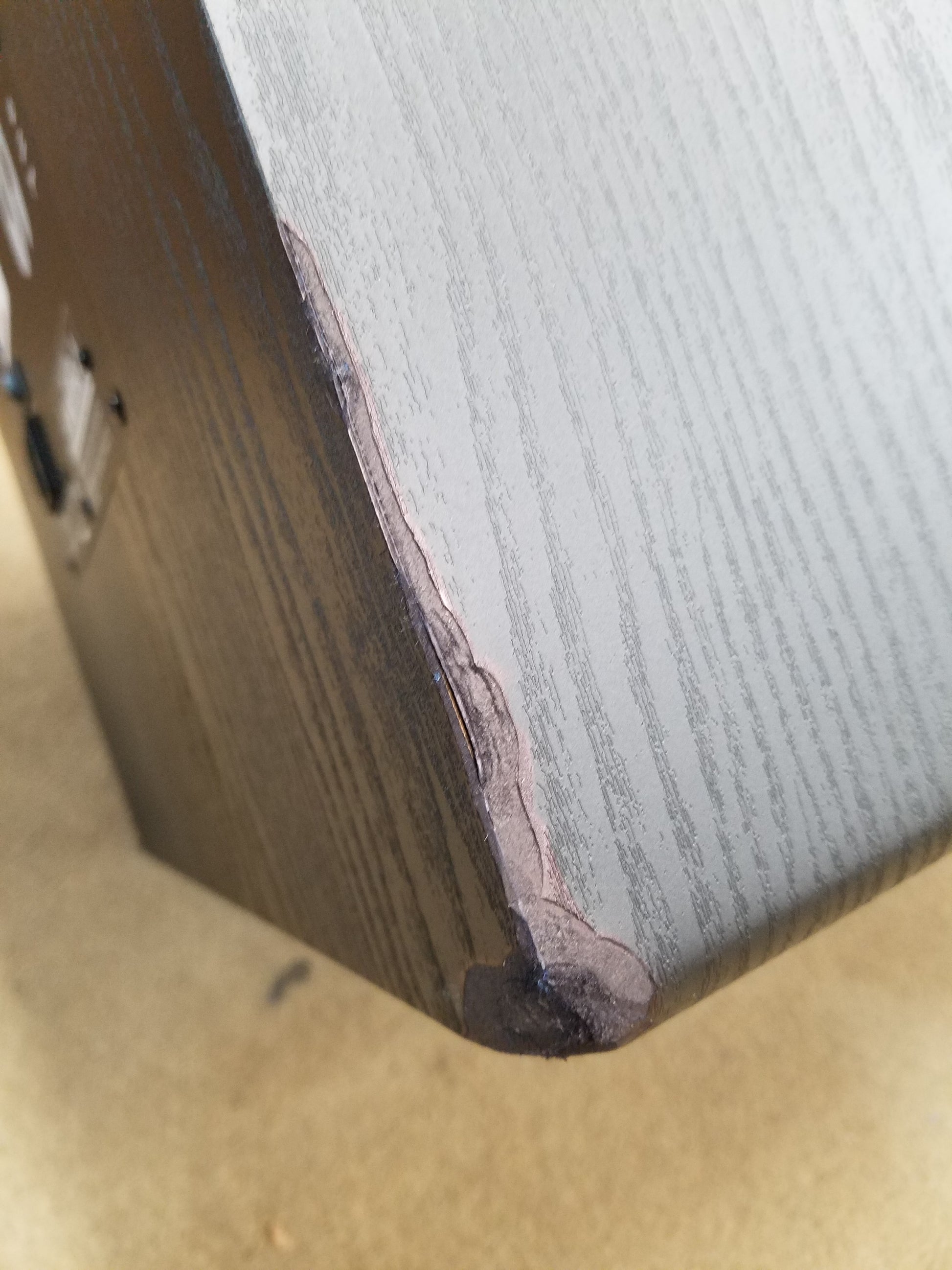

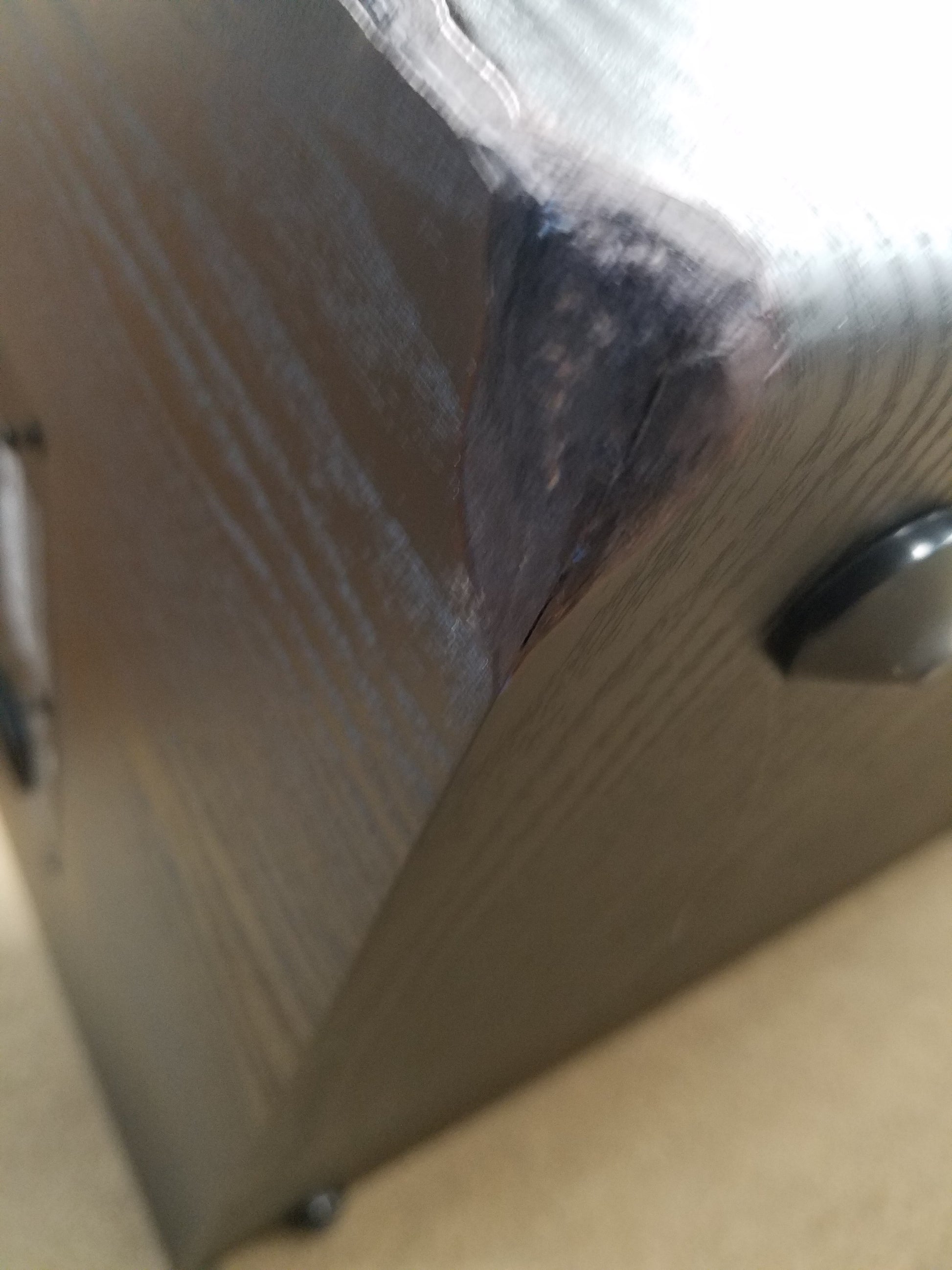

Outlet Special: Blemish in finish. See additional pic. Factory inspected and tested. 5-Year Unconditional Warranty and complete Bill of Rights coverage.

Save an extra 5% on the purchase of 2 or more subwoofers with promo code "GoDual". Copy Code
PB12-NSD - Outlet - 2124
PB12-NSD - Outlet - 2124

45 Day Risk-Free In-Home Trial

$ 449.99

each

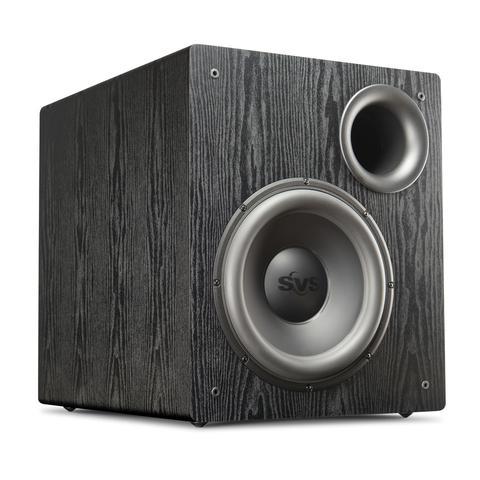

The PB12-NSD subwoofer is the ultimate subwoofer over-achiever. It’s room-energizing, pants-flapping bass, for a fraction of the cost of the typical reference subwoofer. SPLs and output also compares with much larger ported box subwoofers but with a greater control and accuracy from the sophisticated Sledge amplifier, overbuilt driver and precisely tuned cabinet.

Audioholics - Bassaholic Certified Medium Award
Sound & Vision - Top Pick of the Year Award
AVForums - Best Buy Award

Frequency Response / Acoustic Data:

  • 18-150 Hz +/- 3 dB
  • 2-meter ground plane away from reflective structures (quasi-anechoic)

Subwoofer Specs:

  • Cabinet Dimensions: 20.9" (H) x 17.3" (W) x 22"(D)
  • Overall Dimensions: 21.4" (H) x 17.3" (W) x 25.4" (D) (includes feet, grille, amplifier)
  • Weight (unboxed): 66 pounds
  • Shipped Dimensions: 30" (H) x 23" (W) x 27" (D)
  • Shipped Weight: 82 pounds
  • Rigid and braced Medium Density Fiberboard (MDF) cabinet
  • Premium black ash finish
  • Front-firing driver
  • Front-firing 4" high-flow flared port
  • Protective non-resonant steel mesh grille
  • Power cord length: 8 feet

Driver Specs:

  • SVS 12” NSD driver
  • 2” diameter, high-power voice coil with high-temp former
  • Nomex linear roll long-throw spider
  • Low-creep rubber long-throw surround
  • Spider-integrated tinsel leads
  • Aluminum cone and composite dust cap with SVS logo
  • Powder-coated cast aluminum basket
  • Finite Element Analysis (FEA)-optimized motor structure
  • Dual shorting rings and pole extenders to reduce gap induction and distortion
  • Vented pole piece for greater cooling and low noise.
  • Dual high-grade ferrite magnets
  • Pole piece vent for greater cooling, low noise, and reduced air compression

Amplifier Specs:

  • STA-400D Sledge with 400 watts RMS continuous power (800 watts peak dynamic power)
  • High efficiency cool-running Class D switching topology
  • Detachable power cord with main power switch and fuse
  • RoHS compliant, lead-free construction and world-wide safety certifications
  • Auto-On / On switch with "green" standby mode
  • Stereo line-level RCA input/output connections
  • Fully adjustable low pass filter with Disable setting
  • Unfiltered (for daisy-chain) and 80 Hz HPF line level RCA outputs
  • Customized EQ and DSP limiter settings specifically for the PB12-NSD
  • Input impedance - 20 kΩ (unbalanced RCA)
