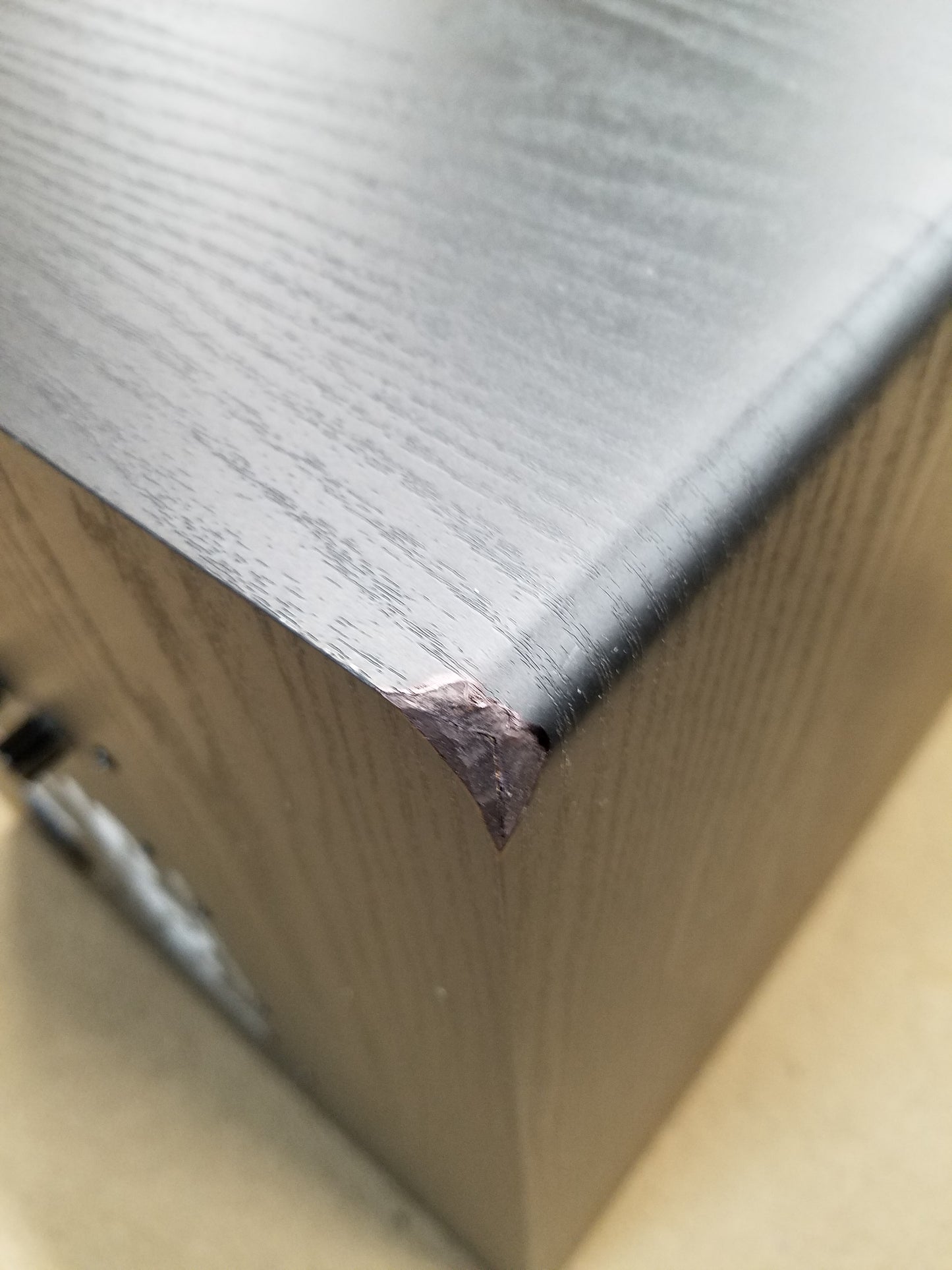

PB12-NSD - Outlet - 1655
PB12-NSD - Outlet - 1655

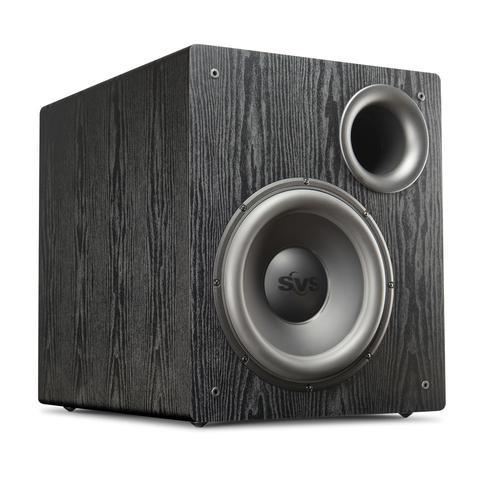

The PB12-NSD subwoofer is the ultimate subwoofer over-achiever. It’s room-energizing, pants-flapping bass, for a fraction of the cost of the typical reference subwoofer. SPLs and output also compares with much larger ported box subwoofers but with a greater control and accuracy from the sophisticated Sledge amplifier, overbuilt driver and precisely tuned cabinet.
Frequency Response / Acoustic Data:
- 18-150 Hz +/- 3 dB
- 2-meter ground plane away from reflective structures (quasi-anechoic)
Subwoofer Specs:
- Cabinet Dimensions: 20.9" (H) x 17.3" (W) x 22"(D)
- Overall Dimensions: 21.4" (H) x 17.3" (W) x 25.4" (D) (includes feet, grille, amplifier)
- Weight (unboxed): 66 pounds
- Shipped Dimensions: 30" (H) x 23" (W) x 27" (D)
- Shipped Weight: 82 pounds
- Rigid and braced Medium Density Fiberboard (MDF) cabinet
- Premium black ash finish
- Front-firing driver
- Front-firing 4" high-flow flared port
- Protective non-resonant steel mesh grille
- Power cord length: 8 feet
Driver Specs:
- SVS 12” NSD driver
- 2” diameter, high-power voice coil with high-temp former
- Nomex linear roll long-throw spider
- Low-creep rubber long-throw surround
- Spider-integrated tinsel leads
- Aluminum cone and composite dust cap with SVS logo
- Powder-coated cast aluminum basket
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings and pole extenders to reduce gap induction and distortion
- Vented pole piece for greater cooling and low noise.
- Dual high-grade ferrite magnets
- Pole piece vent for greater cooling, low noise, and reduced air compression
Amplifier Specs:
- STA-400D Sledge with 400 watts RMS continuous power (800 watts peak dynamic power)
- High efficiency cool-running Class D switching topology
- Detachable power cord with main power switch and fuse
- RoHS compliant, lead-free construction and world-wide safety certifications
- Auto-On / On switch with "green" standby mode
- Stereo line-level RCA input/output connections
- Fully adjustable low pass filter with Disable setting
- Unfiltered (for daisy-chain) and 80 Hz HPF line level RCA outputs
- Customized EQ and DSP limiter settings specifically for the PB12-NSD
- Input impedance - 20 kΩ (unbalanced RCA)
