PB12-Plus - Piano - Outlet - 1190

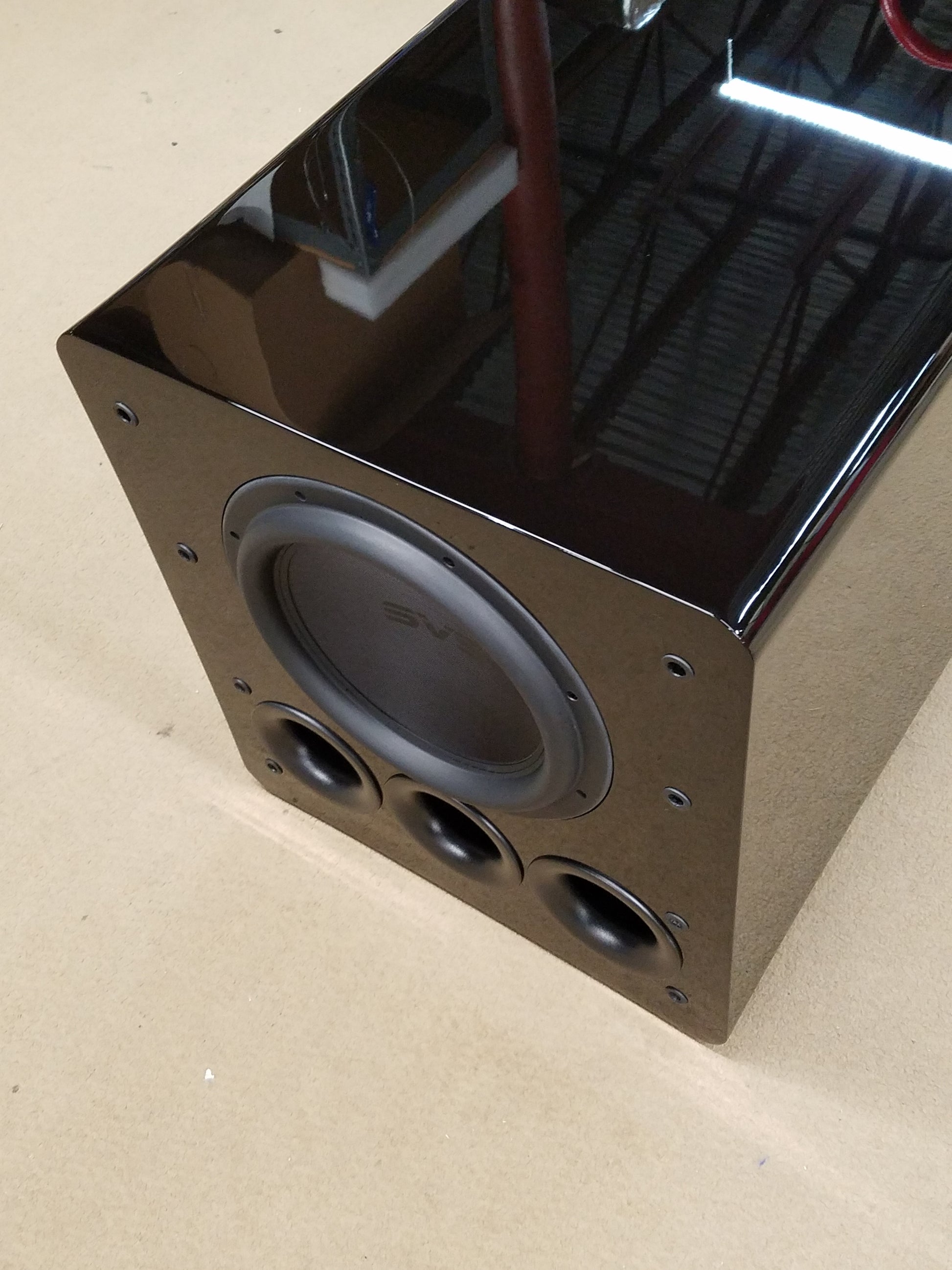

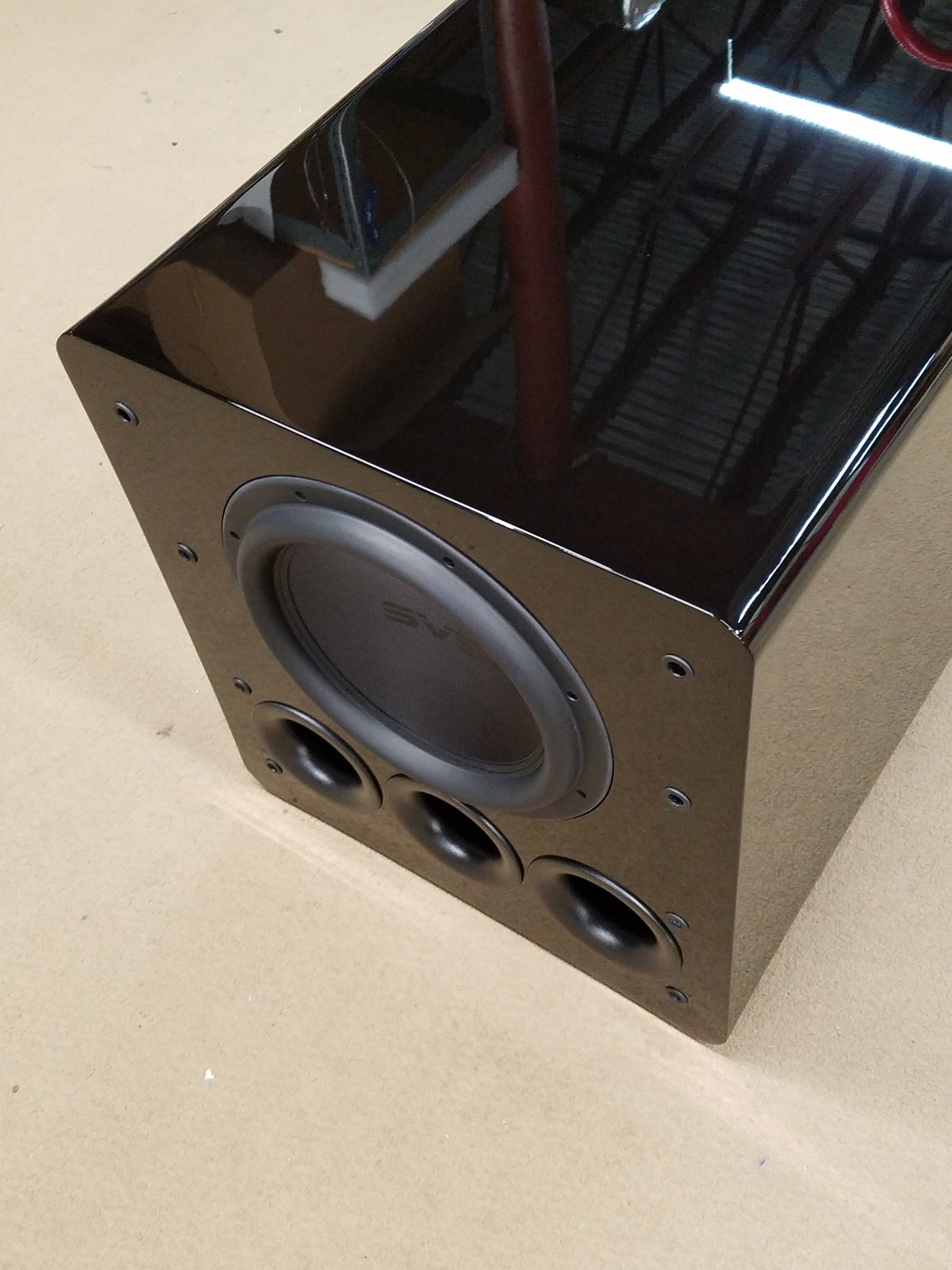

Outlet Special: Scratches on top of the cabinet. See additional picture. Factory inspected and tested. 5-Year Unconditional Warranty and complete Bill of Rights coverage.
In stock & Ships in one business day
45 Day Risk-Free In-Home Trial | Fast & Free Shipping and Returns 5-Year Unconditional WarrantyFind a Dealer
Order by Phone: 1.877.626.5623
All this and more on every SVS order.See the bill of rights

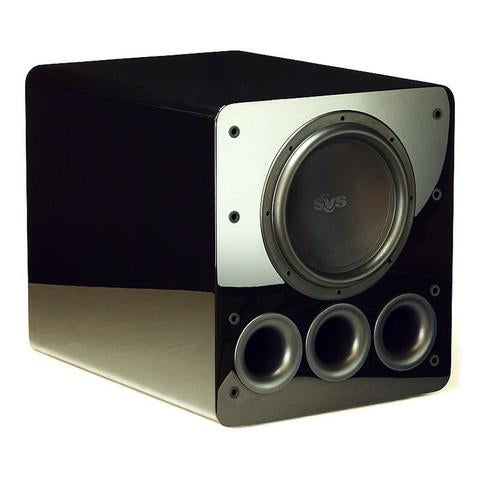

The SVS PB12-Plus subwoofer delivers unmatched low frequency extension and output for the price, out-punching home theater subwoofers costing twice as much. Designed like an acoustic tank with a 12-inch front-firing driver and 800 watts RMS, 2,300+ watts peak power DSP amplifier, the PB12-Plus is an awe-inspiring ported box subwoofer that delivers earth-shaking bass with pinpoint control and accuracy so hear and feel every sonic moment exactly how an artist or director intended.
SVS Owner Systems
SVS owner shots shared via Instagram. Click on pics for captions and submit your own by tagging @SVS_Sound or #soundrevolution.
"From its ungodly output capabilities, true 20Hz extension, and ability to play clean and distortion free, the PB12-Plus DSP has truly earned the right to be called a 'subwoofer'."Audioholics, 2010 Product of the Year - Subwoofer Category, Review by Paul Apollonio.
"The SVS PB12-Plus is truly a chameleon among subwoofers. Its multiple port tunings and parametric EQ mean it can work well in any room with any speaker system. Its build quality is on par with the most expensive products available and it looks great too. I'd have to say SVS has hit this one out of the park."Secrets of Home Theater and High Fidelity, Review by Chris Eberle.
"The PB12-Plus at least matches the performance of any subwoofer in this test, and its price is about 40% less than that of the next-least-expensive sub we tested. If you've got the space for this behemoth, it's probably the best deal going for a high-end subwoofer."Sound & Vision, Review by Brent Butterworth.
Owner Ratings & Reviews
The ported box PB12-Plus has enough sonic muscle to effortlessly fill any home theater with low frequency output below the levels of human hearing, where it can only be felt, while remaining musical and amazingly detailed.
Commanding 12-Inch SVS High Output Driver
Equally suited for music and home theater, the PB12-Plus powered subwoofer boasts a 12-inch front-firing Plus Series driver with dual high-grade ferrite magnets and an FEA-optimized motor for distortion-free performance at the most punishing drive levels. Dual linear-roll spiders and stitched parabolic surround allow the PB12-Plus to generate incredible output through extreme excursion capabilities while maintaining control over the ultra-light and rigid composite cone, so it can stop on a dime with no overhang.
Power and Sophisticated Sledge STA-800D Amplifier
Conservatively rated at 800 watts RMS and 2,300 watts peak power, the Sledge STA-800D DSP amplifier inside the PB12-Plus subwoofer delivers effortless power for maximum SPLs and sonic impact in movies and music, while maintaining pinpoint accuracy of frequency and transient response. It also has brains to match its brawn. A sophisticated DSP offers an array of filters and volume, gain, and phase controls for fine-tuning performance, and the efficient Class-D design consumes less than half-a-watt of power in stand-by mode.
Variable Port Tuning
Rated at 16-250 HZ +/- 3dB, the PB12-Plus subwoofer features variable port tuning so you can adjust output and extension based on listening preferences. For connections, the home theater subwoofer features a stereo line-level RCA and balanced XLR input/output connections along with an 80Hz high pass filtered output connections, continuously variable volume and phase controls, and three top-firing 3-inch high-flow flared ports with large radius inner and outer flanges.
Deft, yet powerful, the SVS PB12-Plus subwoofer delivers deeper low frequency extension and greater output than any ported box subwoofer in its class. Musical bass is rendered with subtlety, nuance and toe-tapping aplomb while movie content is brought to life with seat-rumbling slam and impact as well as mood-enhancing low frequency effects.
SVS 12" High Output Driver
Now in its 5th generation of refinement, the exclusive SVS Plus-12 woofer delivers audiophile-grade sound that is unmatched at this price point. In fact, this driver is so overbuilt, our R&D engineers had to push it with over 2000 watts before it even broke a sweat. From this firm foundation of rugged reliability, the Plus-12 driver delivers exceptional linearity, low-distortion, and excellent detail.
- Finite Element Analysis (FEA)-optimized motor with copper shorting sleeve to reduce gap induction and distortion.
- Bifilar wound, 3" diameter, high-power aluminum voice coil.
- Dual linear-roll spiders and stitched parabolic surround for extreme excursion capability.
- Ultra-light and rigid composite cone provides excellent transient response.
Experience SVS Audio 100% Risk-Free
The best place to audition any speaker or subwoofer isn't a noisy store; it's your own home, in the exact listening room where you will enjoy them!View the Bill of Rights
Frequency Response / Acoustic Data:
- 18-250 Hz +/- 3 dB (20 Hz mode)
- 16-250 Hz +/- 3 dB (16 Hz mode)
- 23-250 Hz +/- 3 dB (sealed mode)
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Black gloss or full veneer black oak finish options.
- Front-firing 12" driver.
- Front-firing triple 3" high-flow flared ports.
- Protective non-resonant steel mesh grille.
- Rigid and braced Medium Density Fiberboard (MDF) cabinet.
- Dense foam port blockers (3) included.
- Power cord length: 8 feet.
- Variable 20 Hz, 16 Hz and Sealed tuning modes.
- Cabinet Dimensions: 22” (H) x 19.8” (W) x 26.6” (D) (without grille).
- Overall Dimensions: 22” (H) x 19.8” (W) x 28.3” (D) (with grille).
- Carton Dimensions: 28” (H) x 25” (W) x 35” (D).
- Weight (unboxed): 127 pounds.
- Weight (boxed): 157 pounds.
- Shipped Dimensions (palletized): 33” (H) x 26” (W) x 40” (D).
- Shipped Weight (palletized): 168 pounds.
- SVS 12” high performance Plus driver.
- Bifilar wound, 3” diameter, high-power aluminum voice coil.
- Polyimide impregnated fiberglass former/bobbin.
- Single, composite layered, linear roll long-throw spider.
- Proprietary injection molded gasket and parabolic SBR surround.
- Composite pulp/fiberglass press layered cone with stitched surround.
- Low carbon 1008 steel components, electrophoresis black plating.
- Finite Element Analysis (FEA)-optimized motor structure.
- Copper shorting sleeve reduces gap induction and distortion, and enhances thermal conductivity.
- Dual Genox 8H/Y-35 high grade ferrite magnets.
- Oversized pole vent for greater cooling and low noise.
- STA-800D Sledge with 800 watts RMS continuous power (2300 watts peak dynamic power).
- High efficiency cool-running Class D switching topology.
- RoHS compliant, lead-free construction and world-wide safety certifications.
- Auto-On / On switch with "green" standby mode.
- Stereo line-level RCA and balanced (XLR) input/output connections.
- Normal and Hi input voltage switch.
- Customized EQ and DSP limiter settings specifically for the PB12-Plus.
- Detachable power cord with main power switch and ceramic fuse.
- Variable tuning with 20Hz, 16Hz, and Sealed settings to match subwoofer port settings.
- Fully adjustable (frequency and slope) phase-correct speaker/sub digital crossover.
- Intelligent Feature Control (IFC) with bright LCD display.
- Digital PEQ with adjustable frequency, cut/boost, and Q values.
- Room gain compensation control with adjustable frequency and slope.
- Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
- Input impedance - 24 kΩ (unbalanced RCA) / 22 kΩ (balanced XLR).
