PB16-Ultra - Black Oak - Outlet - 1079

PB16-Ultra - Black Oak - Outlet - 1079

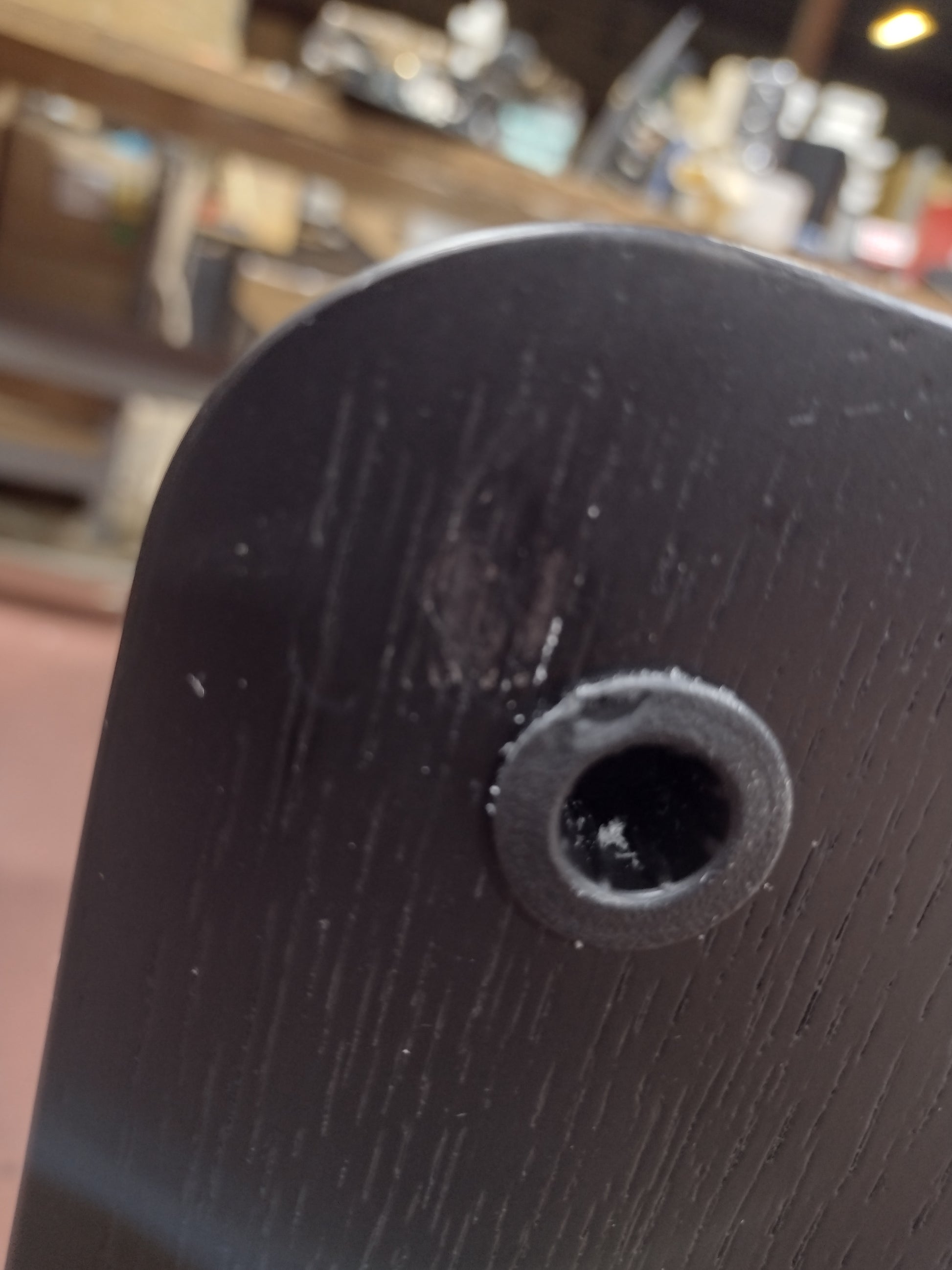

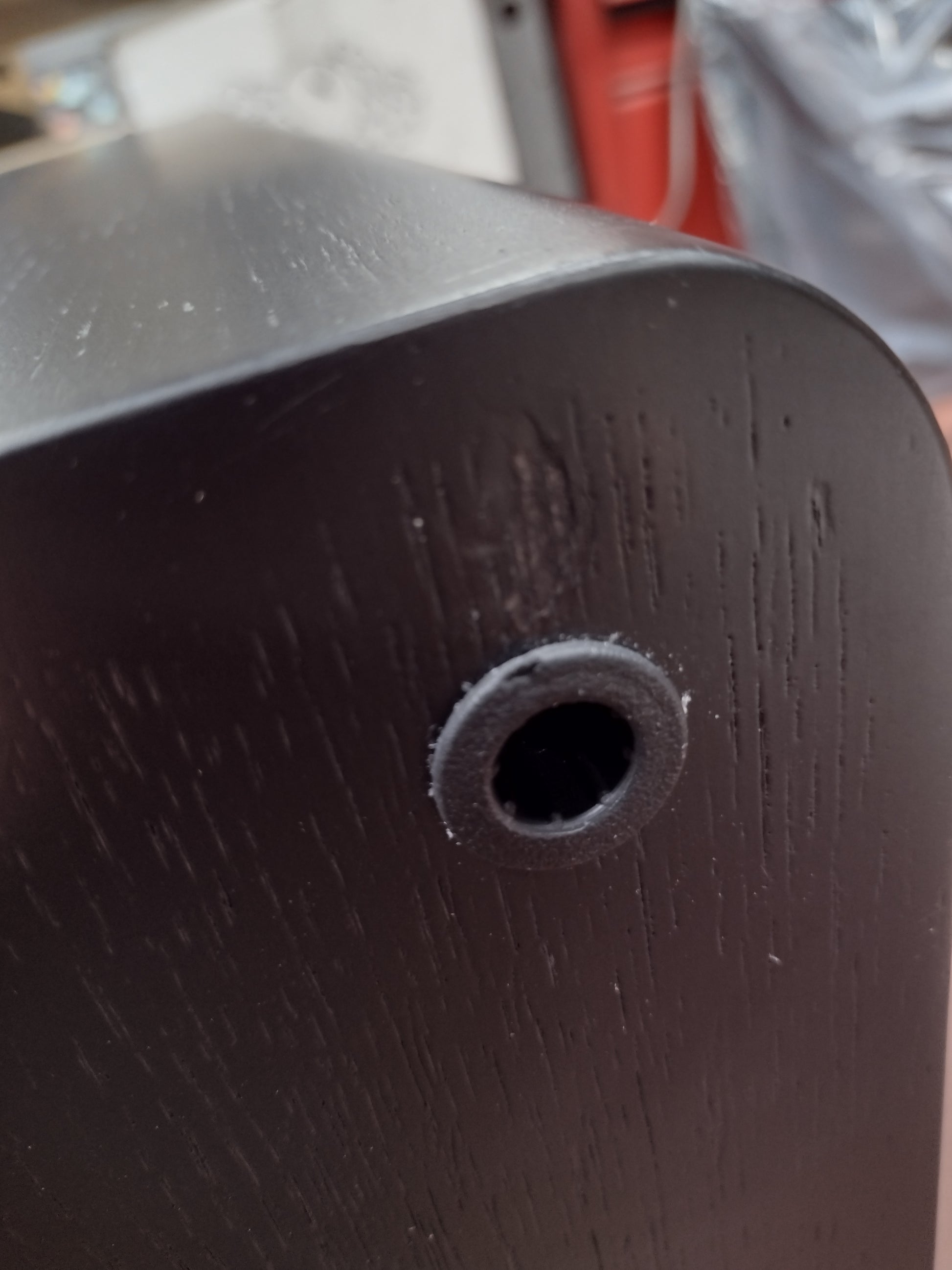

Outlet Special: Dent on the top edge. See additional pic. Factory inspected and tested. 5-Year Unconditional Warranty and complete Bill of Rights coverage.
PB16-Ultra - Black Oak - Outlet - 1079

45 Day Risk-Free In-Home Trial

$ 2,299.99

each

PB16-Ultra

EISA Award - Best Product 2017-2018
Audioholics - Product of the Year Award
AVSForum - Top Choice 2017 Award
Audio Reference - 2018 Test Winner Award - SB16-Ultra
AVForums - Highly Recommended Award
HC Review - Reference Award
Stereoplay - Highlight Award
Audioholics - Bassaholic Certified Extreme Award
Sound & Vision - Top Pick of the Year Award
CES Innovation Awards - 2017 Best of Innovation
Stereophile - 2019 Recommended Component Award
Sound & Vision - Top Pick Award
Digital Trends - Editors Choice Award

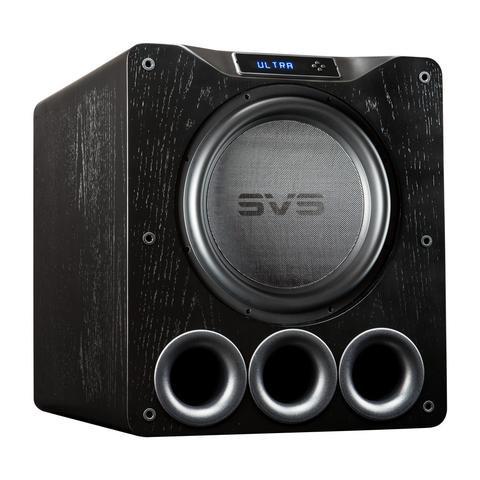

Product Overview

One Subwoofer to Rule Them All. Introducing the PB16-Ultra.

An unrelenting passion for breathtaking bass performance and engineering perfection guided every aspect of the PB16-Ultra subwoofer’s development. Groundbreaking technology, rigorous design and extreme testing in real world and laboratory environments allowed SVS to achieve unmatched low frequency extension and output capabilities all while keeping it amazingly detailed and articulate. The culmination of all SVS design advancements, PB16-Ultra represents an incomparable bass experience. Nothing else comes close.

Frequency Response / Acoustic Data:

* Frequency response graph does not denote maximum output capability
  • 15-280 Hz +/- 3 dB (standard mode – all ports open)
  • 13-280 Hz +/- 3 dB (extended mode – 2 ports open)
  • 14-360 Hz +/- 3 dB (sealed mode – all ports sealed)
  • 2-meter ground plane away from reflective structures (quasi-anechoic).
  • Roll-off slope specifically optimized to take maximum advantage of available room gain

Subwoofer Specs:

  • Black Oak and Piano Gloss Black finish options
  • Protective non-resonant steel mesh grille
  • Front-firing 16" driver
  • Rear-mounted amplifier
  • Screw-in rubber feet
  • Triple 3.5-inch ports
  • Robust Medium Density Fiberboard(MDF) cabinet construction
  • Cabinet Dimensions: 25" (H) x 21.7" (W) x 28.3" (D) (without grille)
  • Cabinet Dimensions (with grille): 25” (H) X 21.7” (W) X 30.9” (D)
  • Shipped Dimensions: 34.2" H X 27.5" W X 38.6" D
  • Weight (unboxed): 174.5 lbs
  • Shipped Weight: 207.3 lbs

Driver Specs:

  • SVS 16” Ultra-series driver
  • Powder-coated cast aluminum basket
  • Four high-grade ferrite magnets
  • Finite Element Analysis (FEA)-optimized motor structure
  • Dual shorting rings reduce gap induction and lower distortion
  • Extended pole piece improves heat sink and thermal management properties
  • 8” diameter, high-power edge wound voice coil
  • 95mm peak to peak Xmech excursion (82mm Xmax)
  • Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
  • Dual 24-strand copper and Nomex composite high-temperature leads provide a pristine electrical connection from the amplifier to the voice coil
  • Premium glass fiber laminated dustcap and reinforced composite cone sub-structure ensure a light, ridged, and neutral radiating surface
  • Low-creep rubber long-throw surround for excellent durability and longevity

Amplifier Specs:

  • Sledge STA-1500D DSP amplifier
  • 1,500 watts RMS continuous (5,000+ watts peak dynamic)
  • Efficient and cool-running Class D topology
  • High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer processor available for perfect audio reproduction
  • Active PFC (Power Factor Correction) ensures the cleanest 1500W output regardless of your home mains supply
  • XLR and RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications
  • Convenient front-mounted display with subwoofer controls and 8 digit LED display
  • Groundbreaking Subwoofer Control and Bass Management Smartphone App for Apple and Android Devices
  • IR Remote Control
  • Three user adjustable parametric EQs
  • Continuously variable volume/gain control
  • Continuously variable (0-180 degrees) phase control
  • Continuously variable (30-200 Hz) 6, 12, 18, or 24 dB/octave low pass filter frequency with disable/LFE setting
  • Main power rocker switch
  • Auto-On / On / Trigger Controls
  • 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
  • Green standby mode with > 0.5 watts consumption
  • Input impedance 22kohm (RCA)/ 22kohm (XLR).
  • RoHS compliant, lead-free construction and world-wide safety certifications
  • Detachable power cord

Included Accessories:

  • Protective non-resonant steel mesh grille
  • Iso-elastomer feet included
  • Extra heavy-duty, high current 6' power cord
  • 1 Foam port tuning plug
  • PB16-Ultra Subwoofer Manual
  • Quick Start Guide

Since the vast majority of SVS subwoofer owners never use the port plugs and many end up in landfills, we’ve made them optional to be a bit more eco-conscious. We are happy to send port plugs free of charge if they will be used, just note in the special instructions during checkout.
