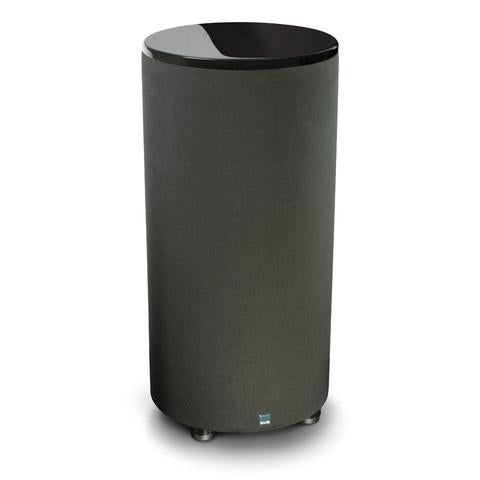

An icon of SVS subwoofer innovation, the cylinder-shaped cabinet design of the PC-2000 subwoofer lets owners benefit from the performance of a larger subwoofer, without sacrificing floorspace. Over 20 driver prototypes were built by hand and punished with rigorous real-world testing; including 100-hours straight of full power testing; before the final version of the 2000 Series driver was approved, making it one of the finest subwoofer drivers and motor assemblies in production.
Commanding 12-Inch SVS High Output Driver
The PC-2000 powered subwoofer boasts a 12-inch down-firing 2000 Series driver consisting of dual high-grade ferrite magnets and an FEA-optimized motor for nearly distortion-free performance. A reinforced Nomex spider was integrated for improved linearity and driver control, especially important when the STA-500D amplifier is pushing the PC-2000 to maximum output levels.
Powerful and Sophisticated Sledge STA-500D Amplifier
The Sledge STA-500D DSP amplifier inside the PC-2000 subwoofer delivers effortless power for maximum SPLs and sonic impact in movies and music, while maintaining pinpoint accuracy on frequency and transient response. It also has brains to match its brawn. A sophisticated DSP offers an array of filters and volume, gain, and phase controls for fine-tuning performance, and the efficient Class-D design consumes less than half-a-watt of power in stand-by mode.
Rated at 17-270 HZ +/- 3dB, the PC-2000 features a stereo line-level RCA input and 80Hz high pass filtered output connections, continuously variable volume and phase controls, and a rear-firing 4-inch high-flow port with large radius inner and outer flanges. Black ash or piano gloss finished top caps give the subwoofer design flexibility to match a range of décors.
Frequency Response / Acoustic Data:
- 16-260 Hz +/- 3 dB
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic)
Subwoofer Specs:
- Elegant top cap in choice of either piano gloss or black ash finish.
- Down-firing 12" 2000-series driver
- Rear-firing 4" high-flow port with custom-tooled outer port flare.
- Premium black-knit speaker grille cloth cylinder covering.
- Rear-mounted Sledge 500W amplifier SVS-exclusive flush mounting system.
- SoundPath Subwoofer Isolation System feet included as standard equipment.
- Extremely rigid and strong cylinder enclosure
- Overall Dimensions: 16.6” (OD) x 34.34” (H) (includes SoundPath Isolation feet)
- Weight (unboxed): 50 pounds.
- Shipped Dimensions: 38.2" (H) x 19.0" (W) x 20.0" (D).
- Shipped Weight: 57.5 pounds.
Driver Specs:
- New SVS 12” 2000-series driver.
- Powder-coated cast aluminum basket.
- Dual high-grade ferrite magnets.
- Finite Element Analysis (FEA)-optimized motor structure.
- Dual shorting rings reduce gap induction and lower distortion.
- Extended pole piece improves heat sink and thermal management properties.
- 2” diameter, high-power voice coil.
- Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
- High-quality insulated tinsel leads with 3-point-contact precision alignment.
- Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior.
- Low-creep rubber long-throw surround for excellent durability and longevity.
Amplifier Specs:
- New Sledge STA-500D DSP amplifier.
- 500 watts RMS continuous (1100 watts peak dynamic).
- Efficient and cool-running Class D topology.
- DSP control for accurate response and refined behavior under all operating conditions.
- Main power rocker switch.
- Auto-On / On toggle switch.
- 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input.
- Green standby mode with < 0.5 watts consumption.
- Stereo line-level RCA Input & Output connections.
- Input impedance – 47 kΩ (unbalanced line-level RCA).
- Continuously variable volume/gain control.
- Continuously variable (0-180 degrees) phase control.
- Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
- Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
- RoHS compliant, lead-free construction and world-wide safety certifications.
- Detachable power cord.
