Boasting a unique and innovative cylinder design, and with a footprint measuring just 16.5-inches in diameter, the SVS PC13-Ultra subwoofer delivers unmatched low frequency extension and output per square-inch of floor space. Standing 47-inches tall with a 13.5-inch down-firing driver and 1,000 watts RMS, 3,600+ watts peak power DSP amplifier, the PC13-Ultra is an attention grabbing tower of bass that uses vertical height to maintain a small footprint so it can fit more easily into a home theater or listening room, without sacrificing performance.
Frequency Response / Acoustic Data:
- 18-200 Hz ± 3 dB (20 Hz mode)
- 15-200 Hz ± 3 dB (16 Hz mode)
- 24-200 Hz ± 3 dB (sealed mode)
- 2-meter ground plane away from reflective structures (quasi-anechoic).

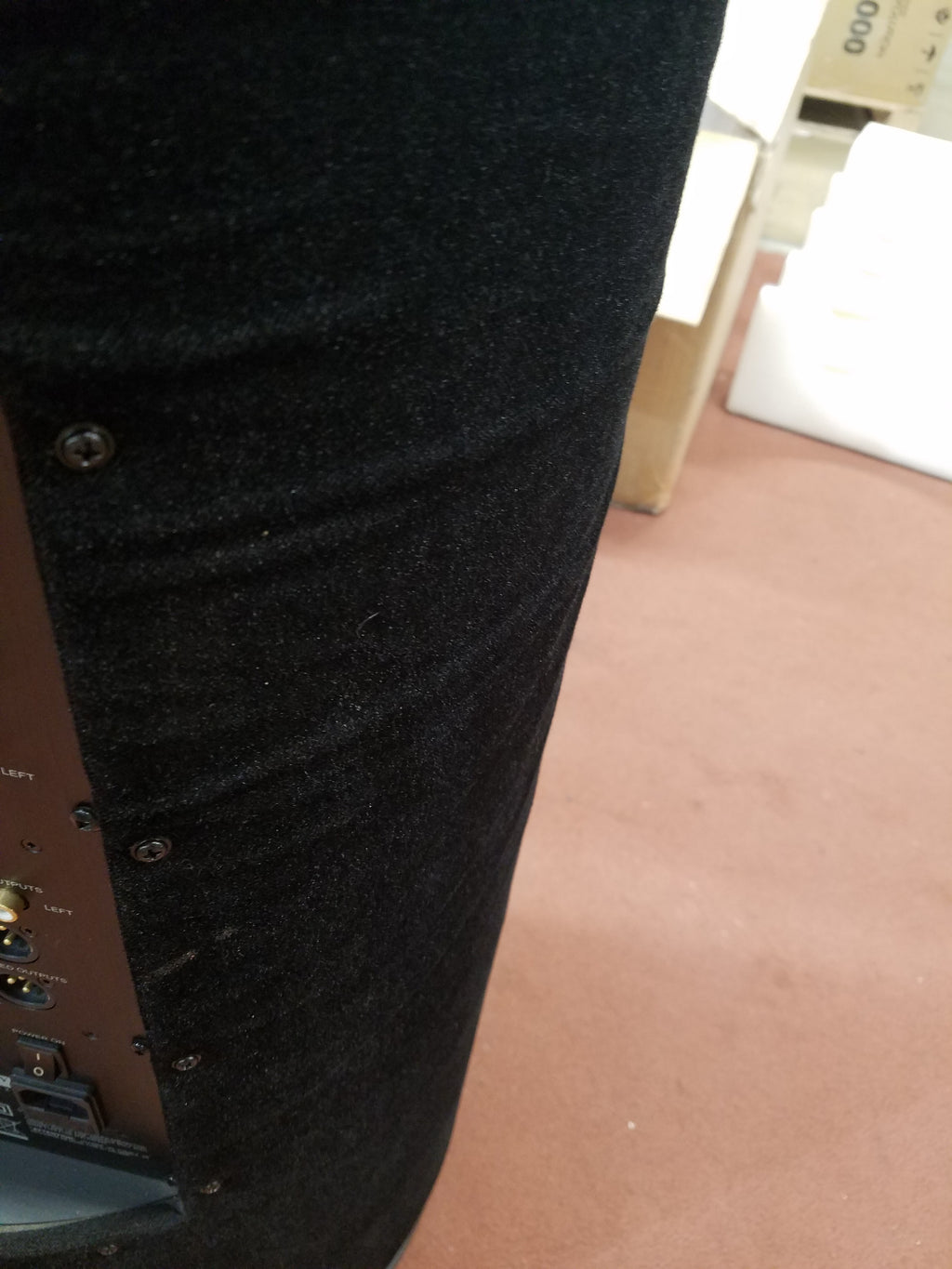

- High-grade black fabric exterior cover
- Down-firing 13.5" driver with integral base plate
- Top-firing triple 3.5" high-flow flared ports
- Extremely rigid and strong cylinder enclosure
- Dense foam port blockers (3) included

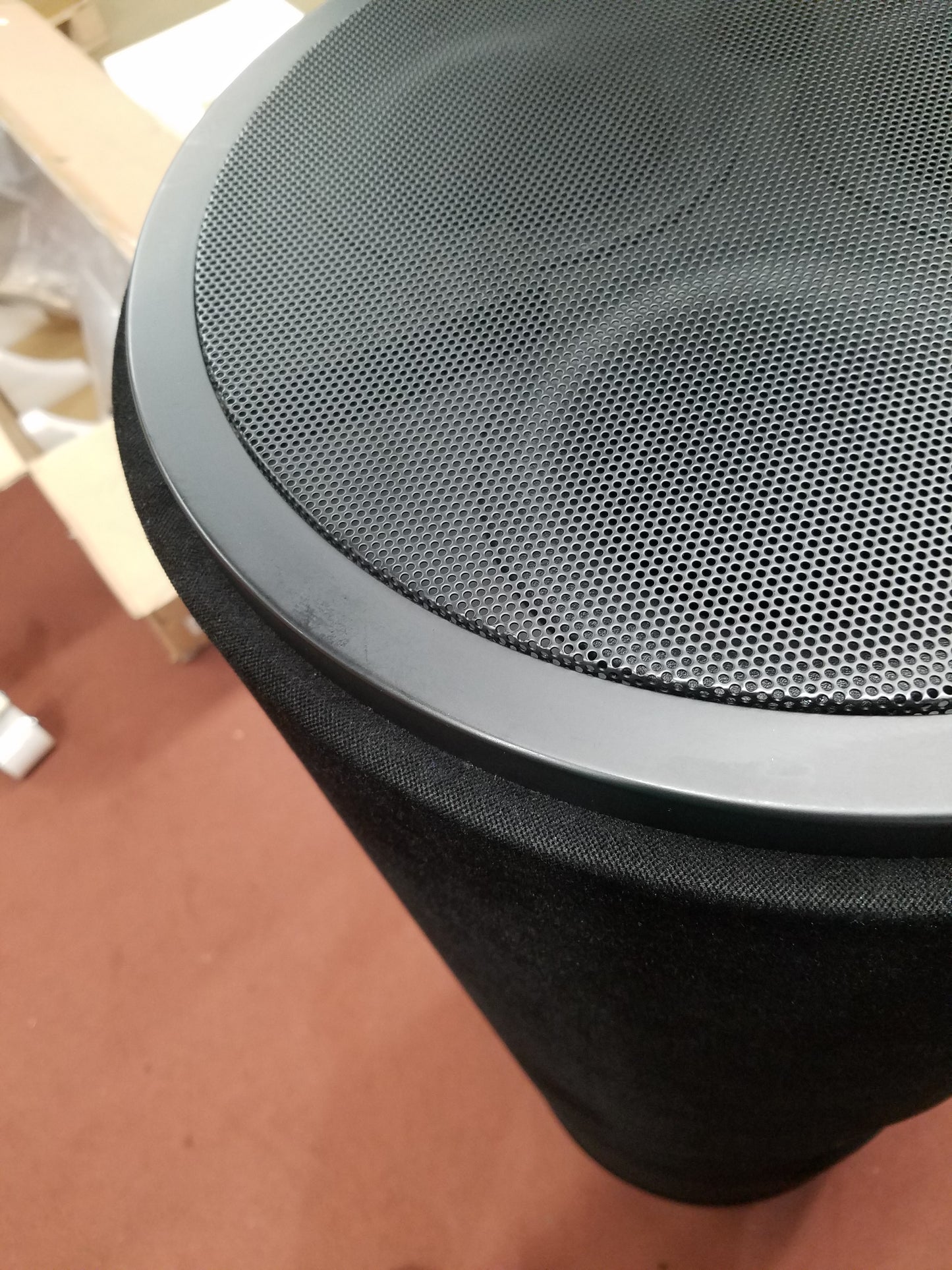

- Protective non-resonant steel mesh grille
- Variable 20 Hz, 16 Hz and Sealed tuning modes
- Cabinet Dimensions: 46" (H), 16.6" (OD)
- Dimensions: 47" (H), 16.6" (OD) (includes feet, grille, amplifier)
- Weight (unboxed): 90 pounds
- Shipped Dimensions: 52" (H), 20" (OD)
- Shipped Weight: 114 pounds
- SVS 13.5” extreme performance underhung Ultra driver
- SVS custom-tooled die-cast aluminum basket
- Flat-wire, 3” diameter, high-power, high-temp, 8-layer, aluminum voice coil
- Polyimide impregnated fiberglass former/bobbin
- Dual 9", composite layered, linear roll, extreme excursion spiders
- Integrated tinsel leads
- Nickel-plated high-tension spring terminals
- Proprietary injection molded gasket and parabolic SBR extreme-excursion surround
- Composite pulp/fiberglass press layered cone with stitched surround
- Low carbon 1008 steel components, electrophoresis black plating
- Finite Element Analysis (FEA)-optimized underhung motor structure for the lowest possible distortion
- Copper shorting sleeve reduces gap induction and distortion, and enhances thermal conductivity
- Dual Genox 8H/Y-35 high grade ferrite magnets
- Oversized pole vent for greater cooling and low noise
- STA-1000D Sledge with 1000 watts RMS continuous power (3600 watts peak dynamic power)
- High efficiency cool-running Class D switching topology
- Detachable power cord with main power switch and ceramic fuse
- RoHS compliant, lead-free construction and world-wide safety certifications
- Auto-On / On switch with "green" standby mode
- Stereo line-level RCA and balanced (XLR) input/output connections
- Normal and Hi input voltage switch
- Customized EQ and DSP limiter settings specifically for the PC13-Ultra
- Variable tuning with 20Hz, 16Hz, and Sealed settings to match subwoofer port settings
- Fully adjustable (frequency and slope) phase-correct speaker/sub digital crossover
- Intelligent Feature Control (IFC) with bright LCD display
- Two (2) digital PEQs with adjustable frequency, cut/boost, and Q values
- Room gain compensation control with adjustable frequency and slope
- Adjustable digital delay on main speaker line-level outputs to time-align the speakers and subs
- Input impedance - 24 kΩ (unbalanced RCA) / 22 kΩ (balanced XLR)
An icon of SVS subwoofer innovation, the cylinder-shaped cabinet design of the PC13-Ultra subwoofer lets you enjoy the performance benefits of a larger subwoofer, without sacrificing the floorspace required of a reference ported subwoofer.
Stunningly Potent 13.5-Inch Down Firing SVS Ultra Driver
Equally matched for music and home theater, the PC13-Ultra powered subwoofer boasts a 13.5-inch down-firing Ultra Series driver with dual high-grade ferrite magnets and an FEA-optimized motor for distortion-free performance at the most punishing drive levels. Dual linear-roll spiders and stitched parabolic surround allow the PC13-Ultra to move massive amounts of air and achieve extreme excursion capabilities while maintaining control over the ultra-light and rigid fiberglass composite cone, so it can start and stop on a dime with no overhang, even with the most challenging music tracks.
Powerful and Sophisticated Sledge STA-1000D Amplifier
Conservatively rated at 1,000 watts RMS and 3,200 watts peak power, the Sledge STA-1000D DSP amplifier inside the PC13-Ultra subwoofer delivers effortless power for maximum SPLs and sonic impact in movies and music, while maintaining pinpoint accuracy in frequency and transient response. It also has brains to match its brawn. A sophisticated DSP offers an array of filters and volume, gain, and phase controls for fine-tuning in-room performance. Plus, the efficient Class-D amplifier design consumes less than half-a-watt of power in stand-by mode.
Since the 13-Ultra subwoofers were launched, we’ve made huge advancements in our Sledge amplifier technology, which is now available to you! Any 13-Ultra owners who ever wanted an affordable upgrade path to enjoy the amazing performance and control benefits of the acclaimed SVS 4000 Series subwoofers can now take advantage of the SVS 13-Ultra Amplifier Upgrade Kit.
Variable Port Tuning
Rated at 15-200 HZ +/- 3dB, the PC13-Ultra subwoofer features variable port tuning so you can adjust output and extension based on listening preferences. For connections, the home theater subwoofer features a stereo line-level RCA and balanced XLR input/output connections along with an 80Hz high pass filtered output connections, continuously variable volume and phase controls, and three top-firing 3.5-inch high-flow flared ports with large radius inner and outer flanges.
Effortless power and extreme low frequency extension without sacrificing detail or musicality, the SVS PC13-Ultra cylinder subwoofer delivers greater output per inch of floorspace than any traditional ported box subwoofer in existence. Musical bass is rendered with delicate refinement and toe-tapping aplomb while movie soundtracks are unleashed with chest-thumping slam and impact as well as mood-setting low frequency effects, all from a subwoofer that blends seamlessly with any speakers.
