PB-2000 - Outlet - 9134
PB-2000 - Outlet - 9134

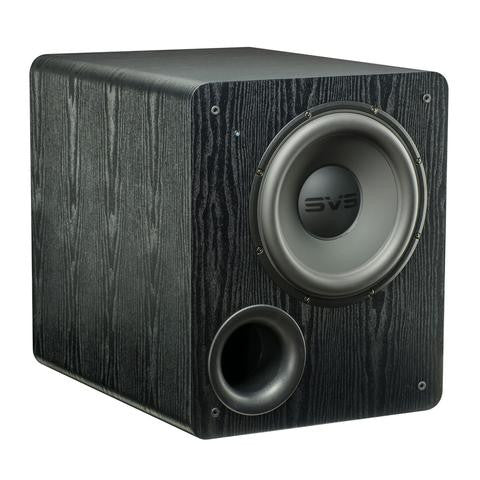

Featuring Ultra Series technology, the SVS PB-2000 subwoofer unleashes effortless, commanding bass down to 17 Hz with exceptional detail and musicality. Sets all the performance benchmarks for a powered home theater subwoofer under $1,000.
Frequency Response / Acoustic Data:
- 17-260 Hz +/- 3 dB
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic)
- Premium black ash finish.
- Protective non-resonant steel mesh grille.
- Front-firing 12" driver.
- Rear-mounted amplifier.
- Screw-in rubber feet.
- Robust Medium Density Fiberboard(MDF) cabinet construction.
- Cabinet Dimensions: 20.9" (H) x 17.3" (W) x 23.2" (D) (without grille).
- Overall Dimensions: 20.9" (H) x 17.3" (W) x 25.4" (D) (with grille).
- Weight (unboxed): 65.6 pounds.
- Shipped Dimensions: 30" (H) x 23" (W) x 27" (D).
- Shipped Weight: 82 pounds.
- SVS 12” 2000-series driver.
- Powder-coated cast aluminum basket.
- Dual high-grade ferrite magnets.
- Finite Element Analysis (FEA)-optimized motor structure.
- Dual shorting rings reduce gap induction and lower distortion.
- Extended pole piece improves heat sink and thermal management properties.
- 2” diameter, high-power voice coil.
- Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
- High-quality insulated tinsel leads with 3-point-contact precision alignment.
- Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior.
- Low-creep rubber long-throw surround for excellent durability and longevity.
- Sledge STA-500D DSP amplifier.
- 500 watts RMS continuous (1100 watts peak dynamic).
- Efficient and cool-running Class D topology.
- DSP control for accurate response and refined behavior under all operating conditions.
- Main power rocker switch.
- Auto-On / On toggle switch.
- 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input.
- Green standby mode with < 0.5 watts consumption.
- Stereo line-level RCA Input & Output connections.
- Input impedance – 47 kΩ (unbalanced line-level RCA).
- Continuously variable volume/gain control.
- Continuously variable (0-180 degrees) phase control.
- Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
- Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
- RoHS compliant, lead-free construction and world-wide safety certifications.
- Detachable power cord.
For chest-thumping movie slam and impact and sheer low frequency performance for the price, the PB-2000 subwoofer destroys larger and more expensive subwoofers, dipping all the way down to 17Hz without sacrificing musicality or speed in transients. The subwoofer features a front-firing 4-inch high-flow port with inner/outer port flares and energizes rooms of all sizes with extreme low frequency output for jaw-droppingly powerful and realistic movie and music audio experiences.
Commanding 12-Inch SVS High Output Driver
At the heart of the SVS PB-2000 ported box subwoofer is a newly engineered 12-inch 2000-series driver with dual high-grade ferrite magnets and FEA-optimized motor for nearly distortion-free performance. A reinforced Nomex spider was integrated for improved linearity and driver control, especially important when the STA-500D amp is pushing the subwoofers to their maximum output levels. To ensure the PB-2000 can withstand punishing output levels long into the future, the driver also features a durable low-creep rubber long-throw surround and integrated tinsel leads to maximize longevity.
Powerful and Sophisticated Sledge STA-500D Amplifier
The PB-2000 Subwoofer’s Sledge STA-500D DSP amplifier features specs and features normally found in subwoofers costing two or three times as much. Conservatively rated at a robust 500 watts RMS continuous and 1,100+ watts peak dynamic, the amplifier has brains to match its brawn. A sophisticated DSP in the amplifier includes an array of filters and volume, gain, and phase controls for fine-tuning performance. The innovations don’t stop there though. A frequency-dependent limiter/compressor algorithm with adjustable attack/release and compression parameters offers the ultimate in refined behavior at the drive limits of the subwoofer system.
With cabinet dimensions of 20.9” x 17.3” x 22” and weighing 66 lbs, the PB-2000 is nearly 40% larger and twice the weight of the SB-2000.
