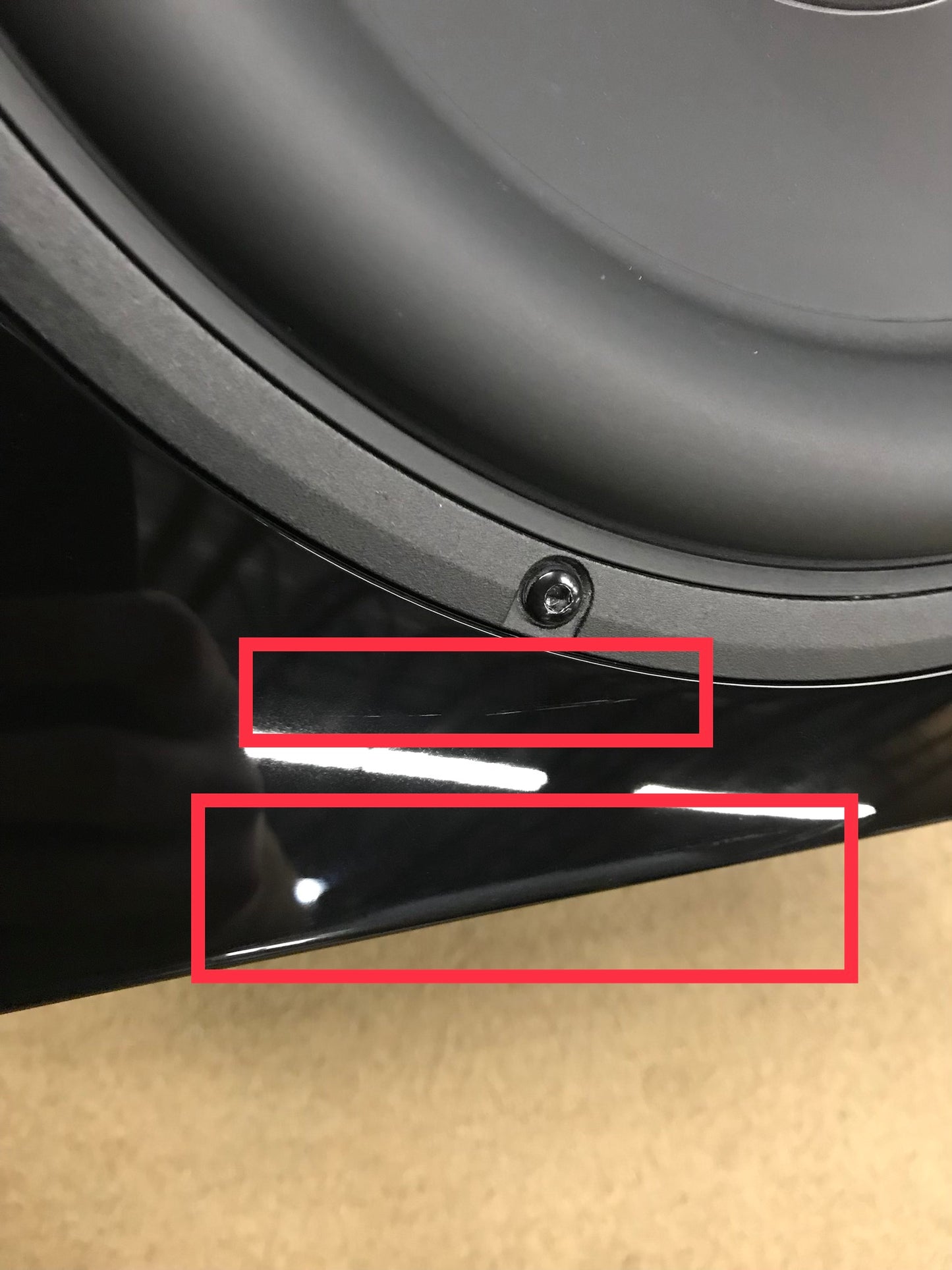

SB-2000 - Piano - Outlet - 1810
SB-2000 - Piano - Outlet - 1810
The SVS SB-2000 Subwoofer is the most popular SVS subwoofer for its combination of effortless power, pinpoint accuracy, flawless transient response, uncompromised musicality, and intelligent processing from a relatively compact cabinet that easily integrates into any system. Featuring Ultra Series technology, the SB-2000 obliterates expectations and delivers unmatched performance for a sealed subwoofer anywhere near its price range staking a claim as the best home theater subwoofer under $1,000.
Frequency Response / Acoustic Data:
- 19-220 Hz +/- 3 dB
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic)
- Roll-off slope optimized to take maximum advantage of available room gain
- Premium black ash and piano black finish options
- Protective non-resonant steel mesh grille
- Front-firing 12" driver
- Rear-mounted amplifier
- Screw-in rubber feet
- Robust Medium Density Fiberboard(MDF) cabinet construction
- Cabinet Dimensions: 14.6" (H) x 14.2" (W) x 15.4" (D) (without grille)
- Overall Dimensions: 14.6" (H) x 14.2" (W) x 17.1" (D) (with grille)
- Weight (unboxed): 34.8 pounds
- Shipped Dimensions: 21" (H) x 20.2" (W) x 23.2" (D)
- Shipped Weight: 51 pounds
- SVS 12” 2000-series driver
- Powder-coated cast aluminum basket
- Dual high-grade ferrite magnets
- Finite Element Analysis (FEA)-optimized motor structure
- Dual shorting rings reduce gap induction and lower distortion
- Extended pole piece improves heat sink and thermal management properties
- 2” diameter, high-power voice coil
- Upgraded Nomex spider for improved linearity and driver control at extreme drive levels
- High-quality insulated tinsel leads with 3-point-contact precision alignment
- Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior
- Low-creep rubber long-throw surround for excellent durability and longevity
- Sledge STA-500D DSP amplifier
- 500 watts RMS continuous (1100 watts peak dynamic)
- Efficient and cool-running Class D topology
- DSP control for accurate response and refined behavior under all operating conditions
- Main power rocker switch
- Auto-On / On toggle switch
- 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input
- Green standby mode with < 0.5 watts consumption
- Stereo line-level RCA Input & Output connections
- Input impedance – 47 kΩ (unbalanced line-level RCA)
- Continuously variable volume/gain control
- Continuously variable (0-180 degrees) phase control
- Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting
- Fixed 80 Hz 12 dB/octave high pass filter on line level outputs
- RoHS compliant, lead-free construction and world-wide safety certifications
- Detachable power cord
The SVS SB-2000 achieves a staggering 19-240 Hz frequency response from a compact, sealed enclosure weighing only 35 lbs. and measuring roughly 15-inches all around. The subwoofer’s weight, compact footprint and understated but elegant appearance makes it easy to move and blend into any listening environment, without sacrificing any of the power and slam you’d expect from a massive subwoofer. No small performer, the SB-2000 beats the output levels of subwoofers twice its size and weight. An all-new driver and amplifier, sealed cabinet and revised tuning enable the SB-2000 to achieve levels of articulation, musicality, dynamics and fathomless extension unequaled in other compact powered subwoofers.
Commanding 12-Inch SVS High-Excursion Driver
At the heart of the SVS SB-2000 subwoofer is a newly engineered 12-inch 2000-series driver with dual high-grade ferrite magnets and an FEA-optimized motor for distortion-free performance, even at the most extreme drive levels. A reinforced Nomex spider was integrated for improved linearity and driver control, especially important when the STA-500D amp is pushing the driver to reference SPL playback levels. This ensures accurate frequency response with maximum impact. To ensure the SB-2000 can play its best long into the future, the driver also features a durable low-creep rubber long-throw surround and integrated tinsel leads to maximize longevity.
Powerful and Sophisticated Sledge STA-500D Amplifier
The SB-2000 Subwoofer’s Sledge STA-500D DSP amplifier boasts specs and features normally found in subwoofers costing two or three times as much. Conservatively rated at 500 watts RMS and 1,100+ watts peak dynamic power, the amp also has brains to match its brawn. A sophisticated DSP in the amplifier includes an array of filters along with volume, gain, and phase controls for fine-tuning performance. A frequency-dependent limiter/compressor algorithm with adjustable attack/release and compression parameters offers the ultimate in refined behavior at the drive limits of the subwoofer system.
Sonically Inert and Rigidly Braced Cabinet
Rounded edges and a curved metal grille cover on the SB-2000 cabinet give it a refined look that blends visually with home theaters and high-end audio systems. Its sealed cabinet design features extensive internal bracing for the driver and motor to ensure an inert environment, resulting in tighter, more accurate bass with no coloration while maximizing on airflow and dynamic output potential.
