Sale price $ 499.99

each

Regular price $ 499.99

each

Product is out of stock

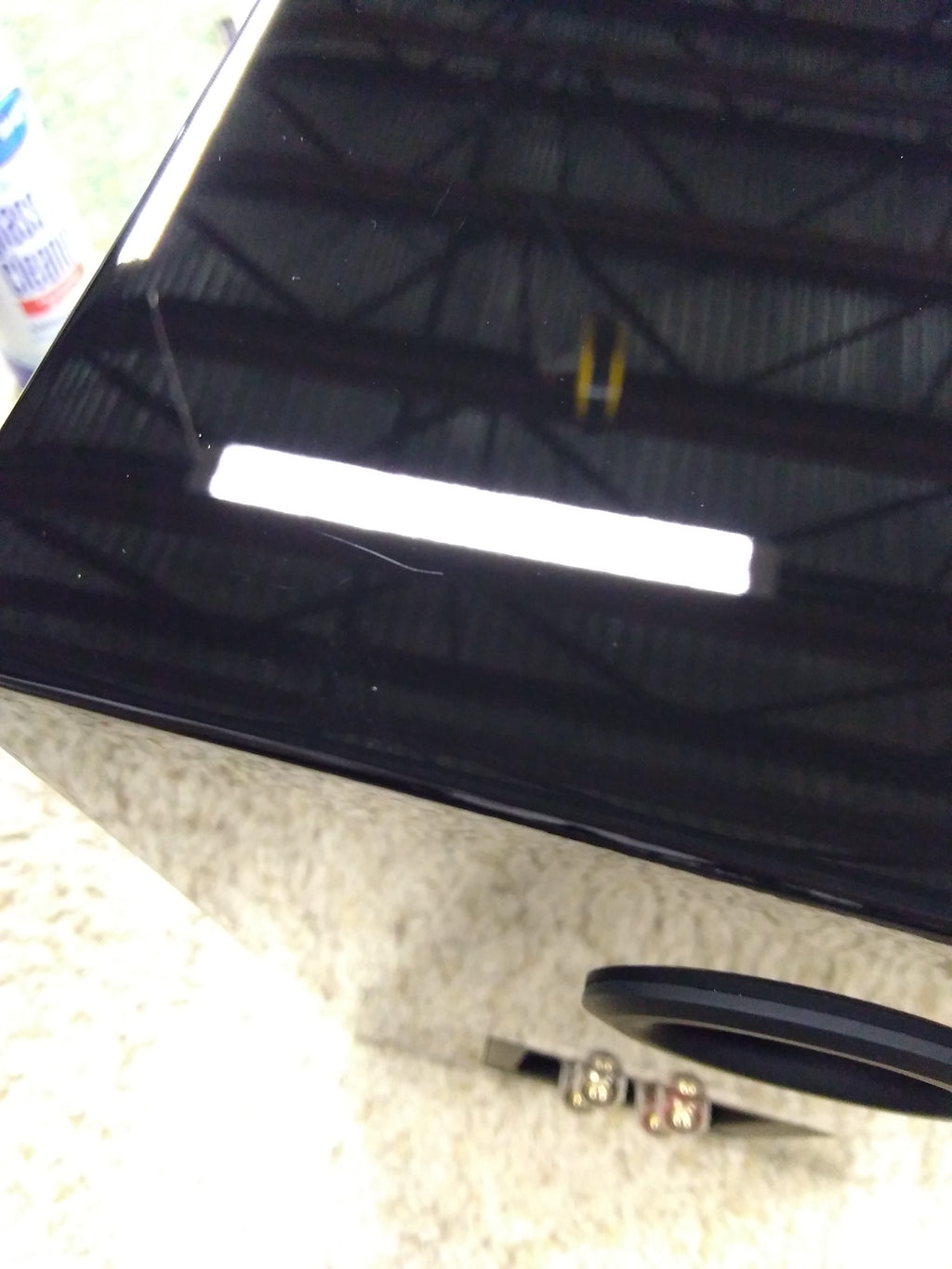

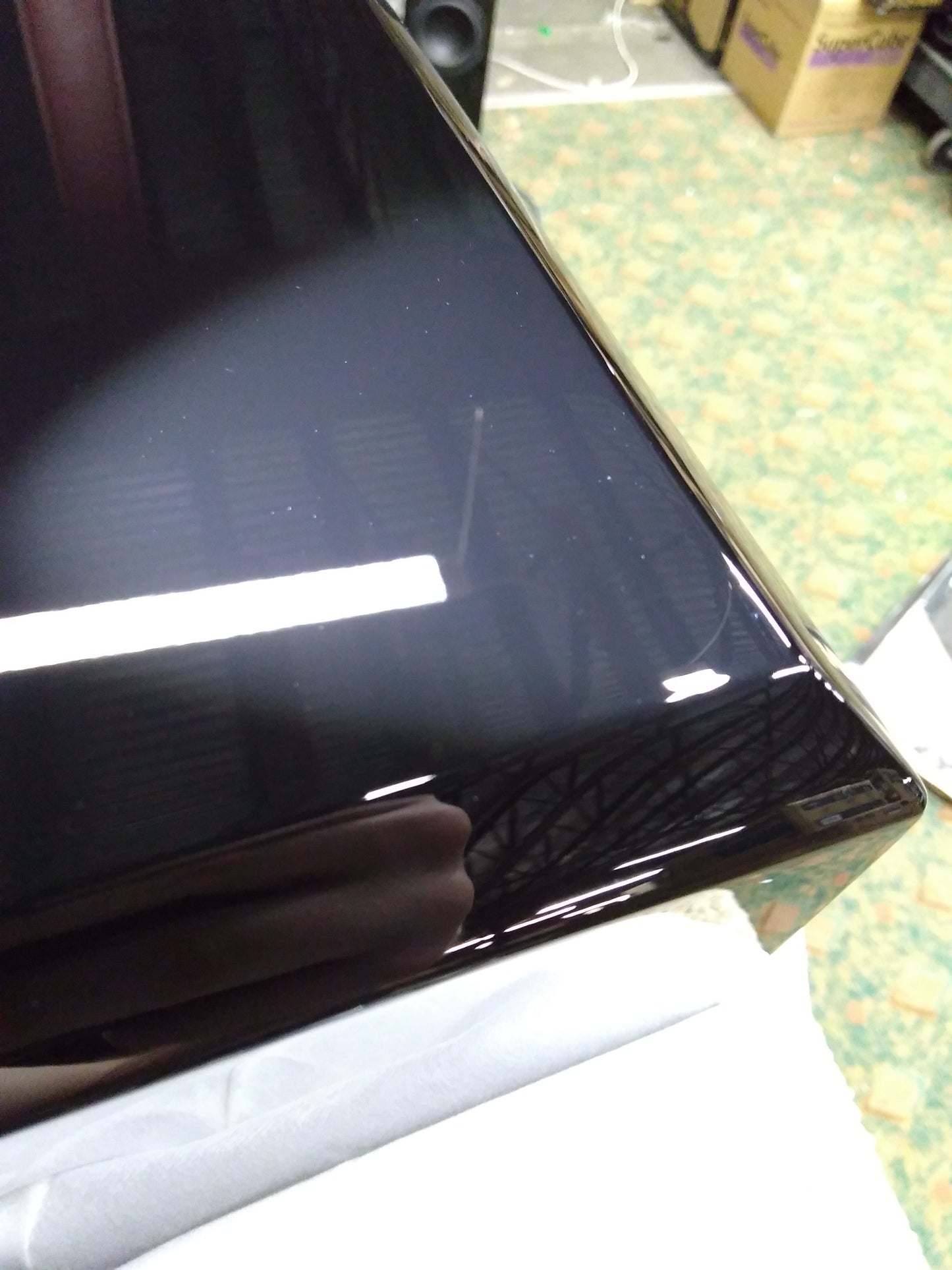

Outlet Special: Blemish in finish. See additional pic. Factory inspected and tested. 5-Year Unconditional Warranty and complete Bill of Rights coverage.

Save an extra 5% on the purchase of 5 or more speakers with promo code "".

  • 45 Day Risk-Free In-Home Trial
  • Fast & Free Shipping and Returns
  • 5-Year Unconditional Warranty

Most Frequently Bought Together

View full details
additionalphoto

The Ultra Bookshelf speakers represent an uncompromising approach to loudspeaker design. From the drivers and crossover to the build materials and cabinet design, every element is painstakingly engineered and tested to achieve reference sound quality.

Ultra Driver & Tweeter Design

Ultra Driver & Tweeter Design

A commanding presence in any home audio system, the 6.5-inch mid-bass drivers feature composite glass-fiber cones that yield excellent stiffness to mass ratio for enhanced sensitivity and voicing that’s transparent and completely faithful to the source material. These capable drivers render an accurate tonal balance with effortless authority and dynamics. Whether conveying the varied nuances of musical instruments and dialogue or the sonic impact of sound effects and movie scores, the Ultra drivers deliver pinpoint accuracy with precise imaging and a massive soundstage.

Elevating high frequency performance, the Ultra Bookshelf speaker’s aluminum dome tweeter is pristinely neutral and revealing. Light, efficient, rigid and impervious to distortion, even at high sound pressure levels, the tweeter’s airy’ presentation of vocals and unveiled highs compare with the best tower and bookshelf speakers in the world. The FEA-optimized diffuser ensures broad dispersion for an incredibly wide and convincing soundstage and perfect on- and off-axis frequency response so everyone in your room experiences the same stunning clarity.

Innovative SoundMatch Crossover Design

Ultra Tower Crossover

SVS Ultra Tower Crossover

No expense was spared with the innovative SVS SoundMatch two-way crossover. The unique topology creates a broad, yet focused and precise soundstage, with accurate frequency response and imaging at all listening positions. The precise tuning of the SoundMatch Crossover also ensures balanced output from sparkling highs to the crystal clear and commanding midrange, down to visceral and authoritative bass.

Performance Driven Cabinet Design and Geometry

Performance Driven Cabinet Design and Geometry

Every feature on the Ultra Bookshelf speaker cabinet is designed with a sonic purpose in mind. Tapered edges on the cabinet’s front baffle, known as chamfers, minimize edge diffraction for clear and precise soundstaging. Internally, each cabinet employs separate sub-enclosures of the mid-bass driver and tweeter to optimize performance and minimize interaction between drive units.

Meticulous, Innovative Design Process

All SVS speakers, regardless of price or form factor, are crafted in the same painstaking fashion. Call it a marriage of exacting science and a passionate expression of technique and love of great sound.

Before a model is ever constructed, drivers and cabinets are theoretically designed by our acoustic engineers using sophisticated computer-aided design (CAD) processes . Then prototypes are carefully measured and optimized in an anechoic environment to achieve pitch-perfect frequency response. After the ideal theoretical frequency response is attained, exhaustive listening and measurement is done in listening rooms calibrated to closely resemble typical home-like room environments.

The result is a speaker that measures well with near-perfect real world frequency response, but also optimized to sound amazing on a human level through listening tests with real music and cinematic content, in a real world listening environment like your home.

Frequency Response / Acoustic Data:

  • Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
  • Nominal impedance: 8 ohms.
  • Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
  • Recommended amplifier power: 20-150 watts.

Speaker Specs:

  • Bookshelf Loudspeaker
  • Real black oak veneer and piano gloss black finish options
  • Dual gold-plated 5-way binding posts
  • 1.7” wide-flared rear-firing port
  • Cloth grille with pin/cup retention system
  • Elastomer stick-on bumper feet (adds 3mm to height)
  • Cabinet Dimensions: 15” (H) x 8.5” (W) x 10.6” (D) (without grille)
  • Overall Dimensions: 15” (H) x 8.5” W x 10.9” (D) (with grille)
  • Shipped Dimensions: 24" (H) x 20" (W) x 14" (D)
  • Weight: 19 pounds
  • Shipped Weight: 42 pounds

Driver Specs:

1” Aluminum Dome Tweeter:

  • FEA-optimized diffuser for airy and unveiled presentation
  • Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio

6.5” Woofers:

  • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
  • Aluminum shorting rings to reduce gap inductance and lower distortion
  • Long stroke motor and suspension for high output
  • Vented voice coil formers to minimize air compression artifacts at high drive levels

Crossover & Cabinet Specs:

Crossover:

  • 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
  • Crossover frequency and slopes optimized for excellent off-axis polar response, outstanding phase coherency, and total radiated sound power
  • Tweeter-to-woofer crossover: 2 kHz

Cabinet:

  • Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
  • FEA-optimized bracing reduces cabinet resonances
