SVS Ultra Evolution Nano

• Frequency Response: 44Hz to 40kHz (+/-3 dB)
• Nominal impedance: 6 ohms.

• Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
• Recommended amplifier power: 20 – 150 watts

• Bookshelf Loudspeaker

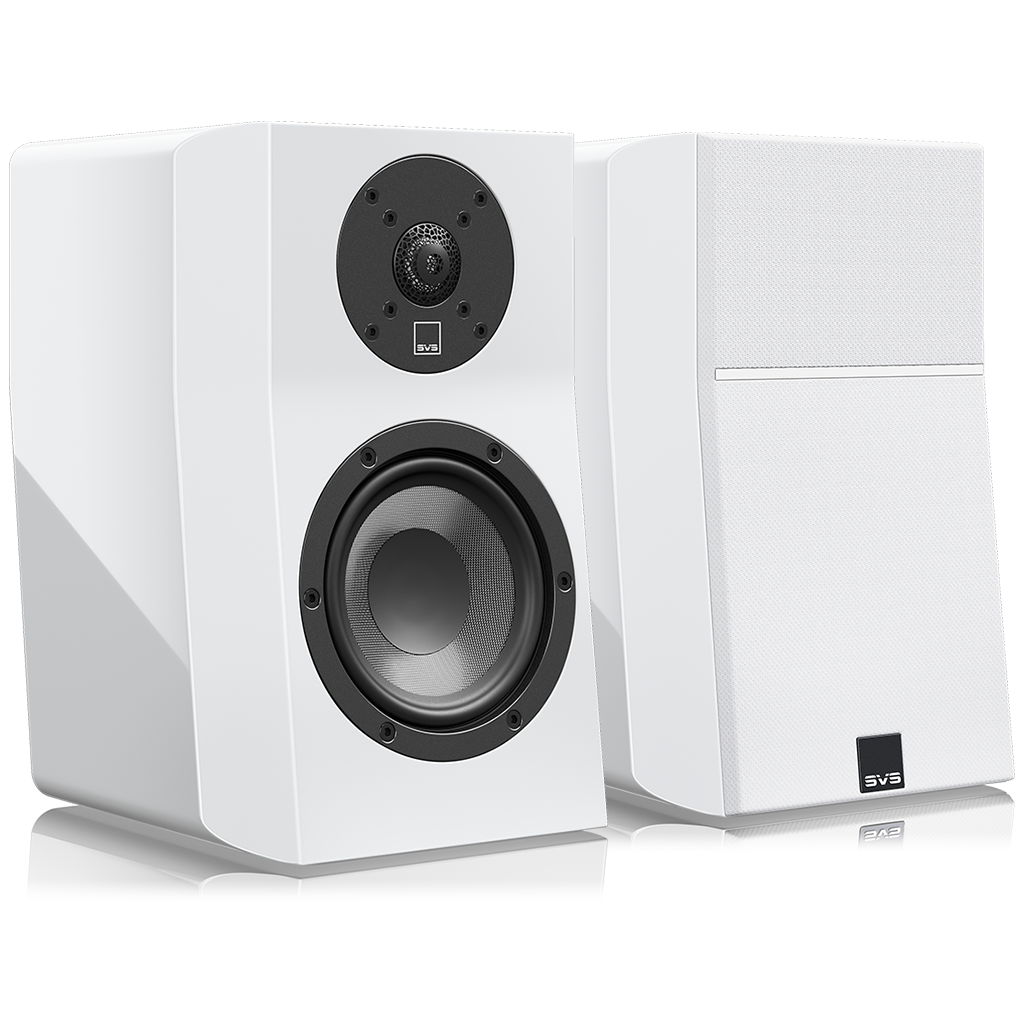

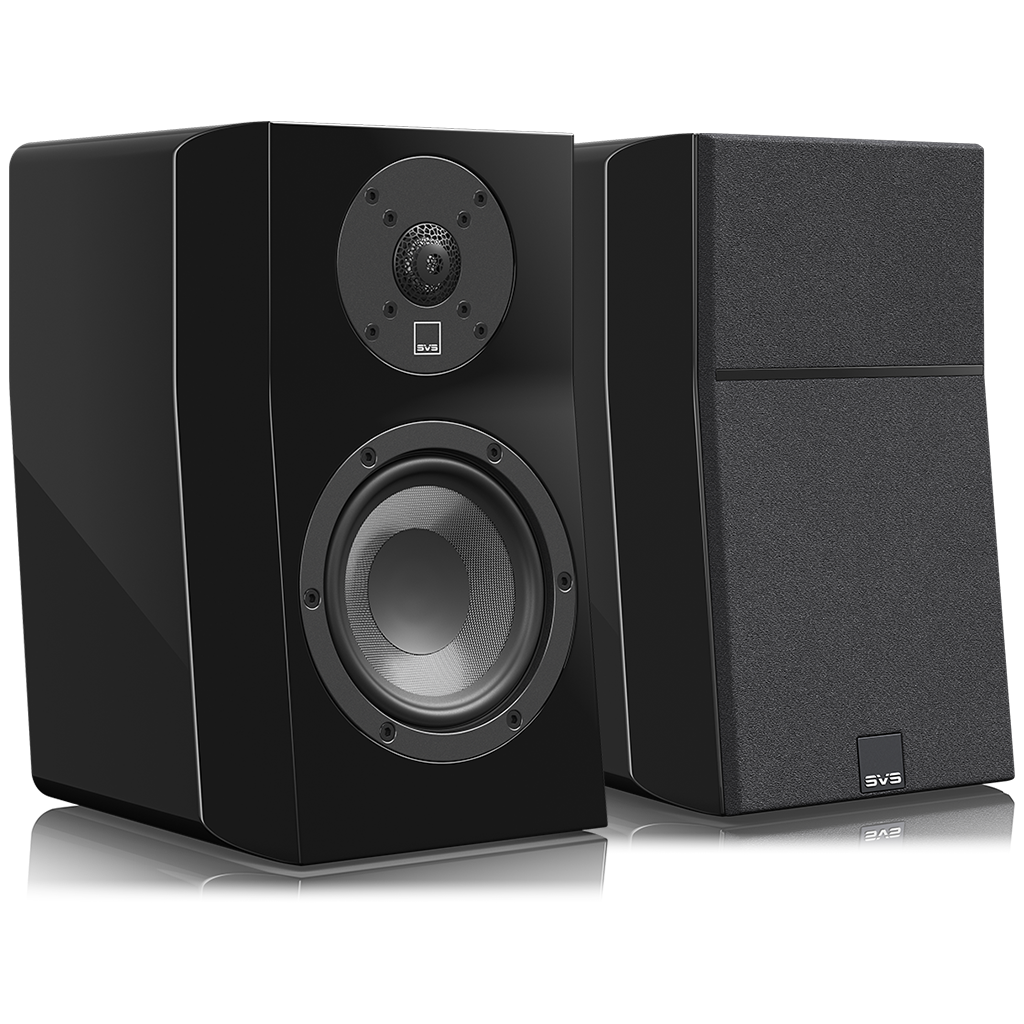

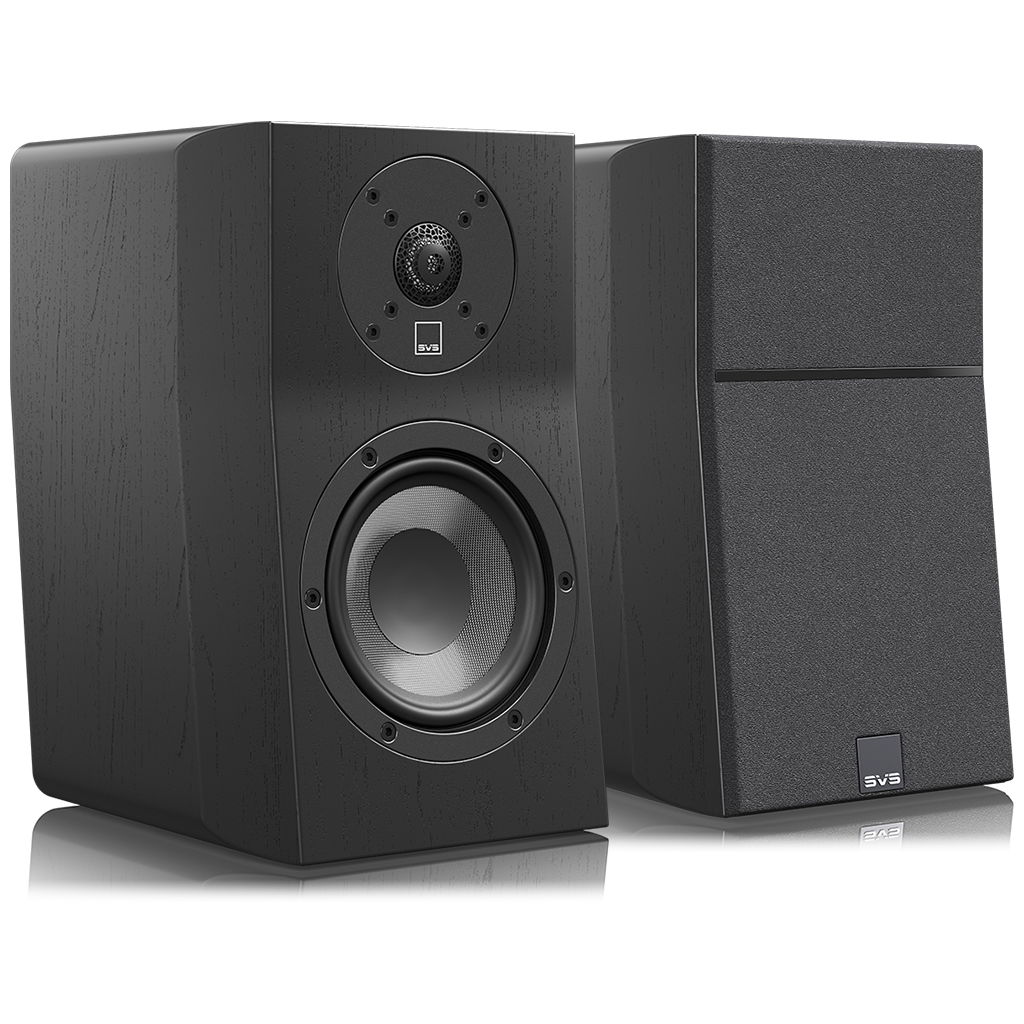

• Piano gloss black, piano gloss white, real black oak veneer finish options
• Gold-plated 5-way binding posts

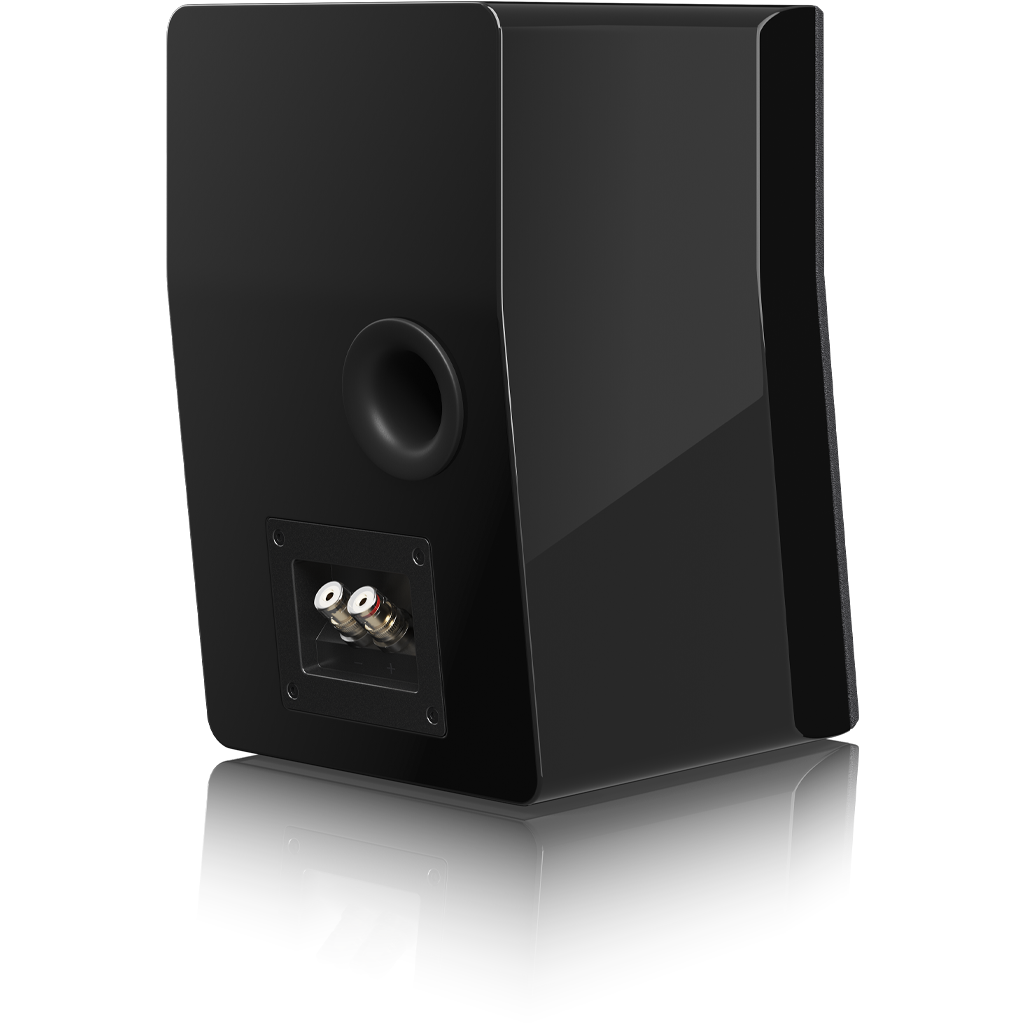

• 1.6” wide-flared rear-firing port

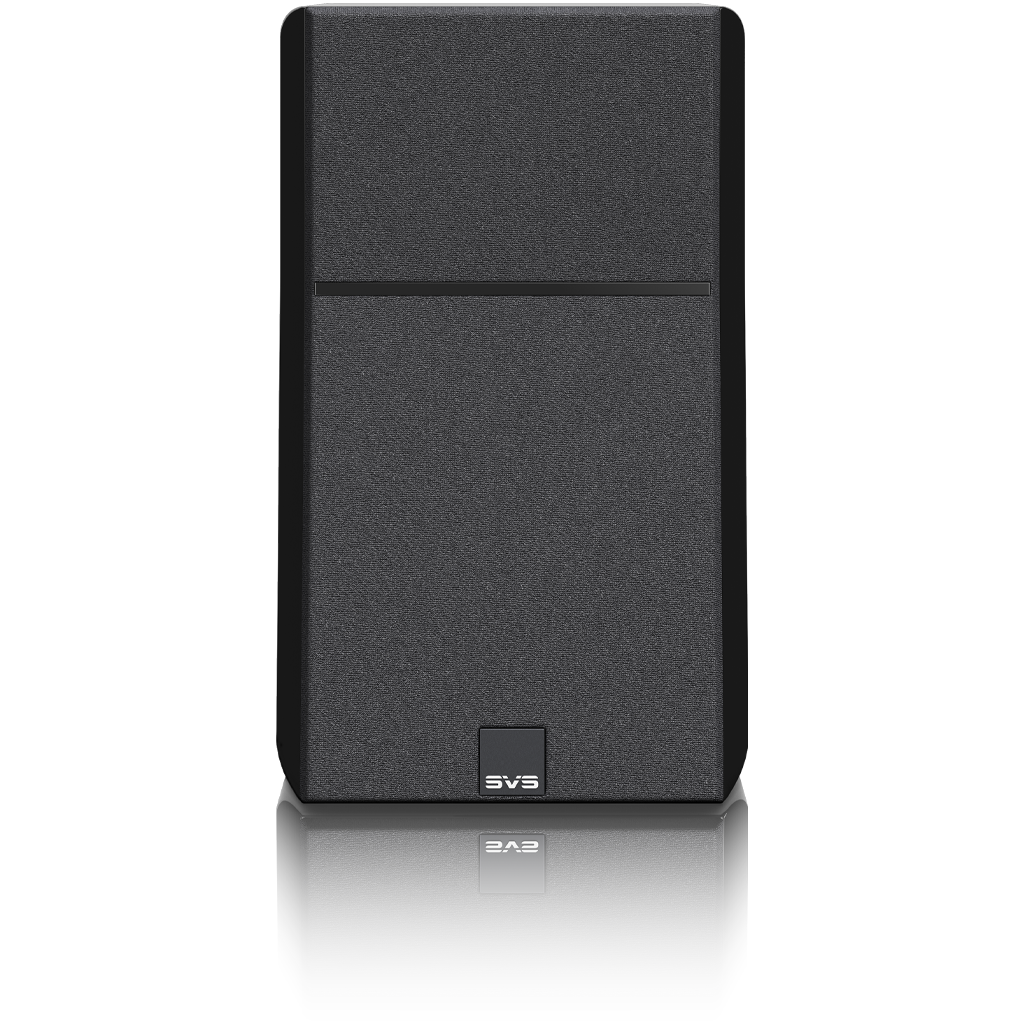

• Cloth grille with magnetic retention system
• Elastomer stick-on bumper feet

• Cabinet Dimensions: 12.2” (H) x 7.48” (W) x 9.21” (D) / 310mm (H) x 190mm (W) x 223.9mm (D)
• Overall Dimensions: 12.36” (H) x 7.48” (W) x 9.57” (D) / 314mm (H) x 190mm (W) x 243mm (D)
• Shipped Dimensions (Pair): 12.2” (H) x 25.4” (W) x 16.9” (D) / 310mm (H) x 646mm (W) x 429mm (D)
• Weight Unboxed: 13.5 pounds / 6.1 kgs
• Shipped Weight: 31.0 pounds / 14.1 kgs

1” Diamond Coated Tweeter

• FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
• Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
• Silver tinsel leads for optimal signal transfer and power handling.

5.25” Woofer:

• Long stroke motor and suspension for high output.
• Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
• Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
• Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover:

• 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
• Tweeter-to-Woofer crossover: 1.9 kHz

Cabinet:

• Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage..
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
• Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
• FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
